Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail
Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail
The Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail is specially designed to transfer the high-temperature ladle.Owing to its strict requirement on safety & anti-high temperature, so material, driving system & electrical parts will be specially designed.In order to prevent spattering of molten steel or steel slag and reduce inertia, the Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail motor designed for slow start and stop .What’s more,the Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail body is equipped with heat insulation material to hinder the inclusion from high temperature radiation.
Advantages of Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail
1.Rail ladle wagon
2.High explosion and temperature resistance
3.Powered by batteries, low pressure tracks, towed cables, and cable reels.
4.Hoisting holes for easy transportation
5.Steady starting, large starting force and long life.
6.Operate on C-shaped or S-shaped and L-shaped orbits
7.The rolling distance of the ladle cart is infinite.
8.The ladle trolley can be operated safely and conveniently
9.High frequency of ladle cart
10.The running distance is no limitation.
Main Components of Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail
Technical parameters of Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
Application and usage of Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail

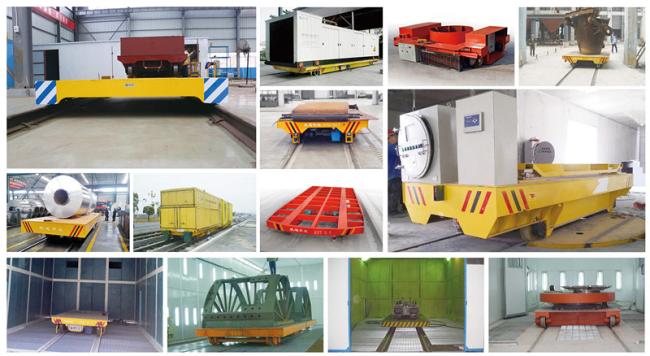

The Ladle Transfer Car High Temperature and Infinite Operation of Steel Transfer Trolley Rail is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
