Industrial Transfer Trolley - A 50 t Trackless Battery Transfer Cart which Can Turn 360 Degree
Industrial Transfer Trolley - A 50 t Trackless Battery Transfer Cart which Can Turn 360 Degree
The BWP series Industrial Transfer Trolley - A 50 t Trackless Battery Transfer Cart which Can Turn 360 Degree is consisted of power source, gear train, steel structure bearing frame, steering gear, running gear, control system and fault diagnosis module. other functions. The Industrial Transfer Trolley - A 50 t Trackless Battery Transfer Cart which Can Turn 360 Degree can turn around on the cement floor.The control mode can be added PLC if need.
Functions of the Industrial Transfer Trolley - A 50 t Trackless Battery Transfer Cart which Can Turn 360 Degree
1.TheTrackless Battery Transfer Cart is Anti-high temperature,Anti-high explosion;
2.The Trackless Battery Transfer Cart is powered by battery;
3.With lifting holes,The Trackless Battery Transfer Cart is convenient to shipment;
4.The Trackless Battery Transfer Cart has a feature of stable start, big starting power, long lifetime;
5.The Trackless Battery Transfer Cart can spin around 360 degrees;
6.Running distance of this Trackless Battery Transfer Cart is unlimited;
7.Safe and convenient operation is available for the Trackless Battery Transfer Cart;
8.High using frequency for the Trackless Battery Transfer Cart;
9.The capacity and table size f the Trackless Battery Transfer Cart can be customized according to your requirements;
10.The V/U shape device can be added.

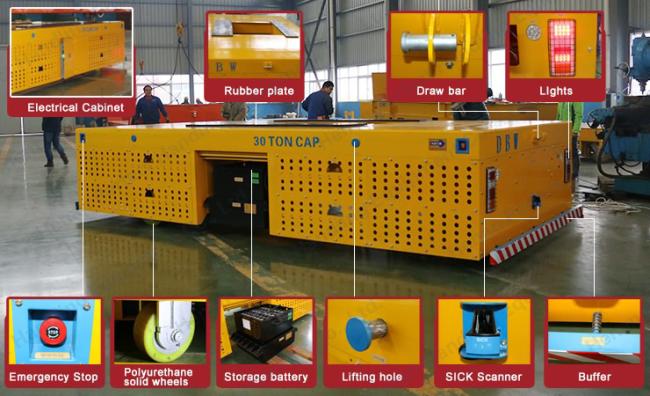

Main Components of the Industrial Transfer Trolley - A 50 t Trackless Battery Transfer Cart which Can Turn 360 Degree
Technical parameters of the Industrial Transfer Trolley - A 50 t Trackless Battery Transfer Cart which Can Turn 360 Degree
| Rated Load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
Application and usage of the Industrial Transfer Trolley - A 50 t Trackless Battery Transfer Cart which Can Turn 360 Degree
The Industrial Transfer Trolley - A 50 t Trackless Battery Transfer Cart which Can Turn 360 Degree is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
