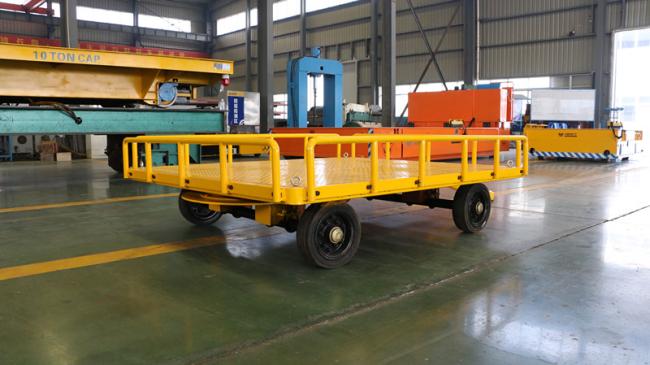

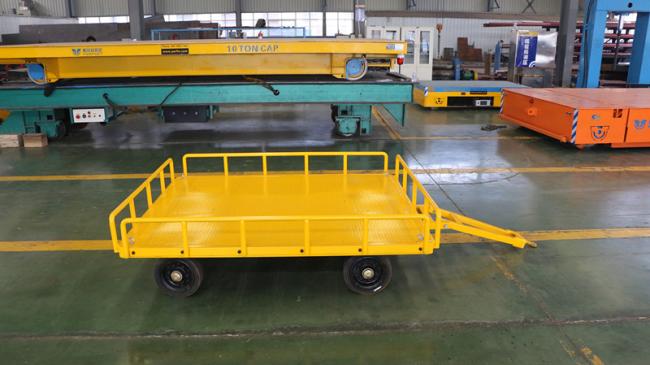

Non-motor towed Heavy Duty Plant Trailer-50t Flat Transfer Trolley

The Non-power towed Heavy Duty Plant Trailer-50t Flat Transfer Trolley manufactured by Henan Perfect Handling Equipment Co.,Ltd.,the global size of the Low Bed Semi Trailer is low and the service life of the Flat Trolley is long,on the same time,the load capacity is customized from 1 ton to 30 tons.The frame of the trolley is made of steel beam,the steering mechanism is connected by steel bar,so that the turning radius is very short,which makes it very flexible working on the small space.This kind of Transfer Trolley has been characteristic as time saving,high secure and labor saving and has been widely applied.

Main Components

All the wheels of the Semi Trailer Truck are connected by steel bars,so all the wheels could be involved in the turning.we build a model and optimize the mechanism to make the turning possible in small space.Considering the applicability,we install additional tow bar to make it possible towed on both sides,on the sane time it is also available for several trolleys to move together.

Advantage

1.High bearing capacity and High efficiency

2.Running distance of Non-power Cart is unlimited

3.Simple structure and easy maintenance

4.High detection efficiency

5.High detection accuracy

6.One or more industrial trailers could be towed by one tractor

7.Adjusting device for rough pavement

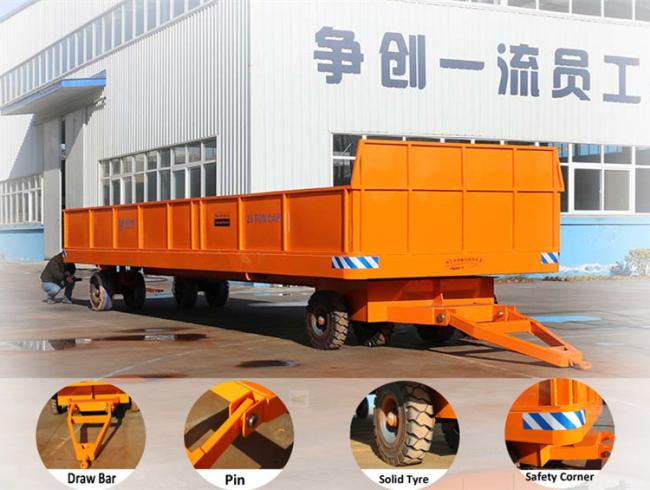

8.Non-power Cart will be equipped with connector or pin to cooperate with the tractor or forklift.

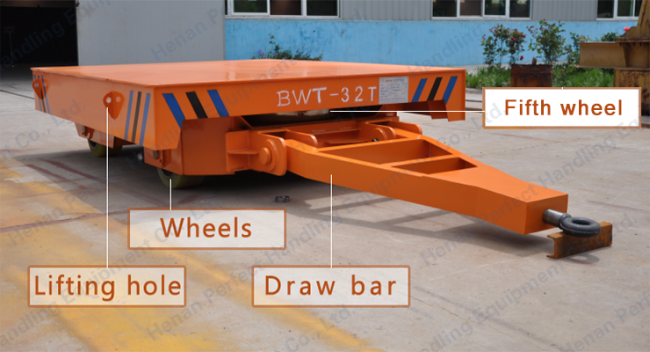

9.The turning device is large rotation support as the fifth wheel, which is usually used in excavating machinery and truck crane.
10.The frame of Non-power Cart is made of steel beam, so the load ability of the trolley is strong and it is not easy to bend over and avoid the deformation, which extends the service time;
11.Non-power Cart applies balance beam for the wheels to make the trailer available on the uneven ground

Technical Parameters

Application and Usage

The Non-power Cart is suitable for a lot of areas, such chemical industry, household appliances, ceramics, metal, machinery, logistics and other industries. And the Non-power Towed Flatbed Transfer Trolley is widely used for short distance transport of paper making, paint, metallurgy, mound machinery and other industries.Non-power Trailer is towed by other machine such as tractor,locomotive and forklift,which have been widely applied in the cargo transportation in the airport,sea port,warehouse,train station.In order to keep stable and flexible during the turning in small space,we have optimized the steering mechanism,wheel press and frame rigidity to make it available for linkage of several trolleys.The Trolley has been highly approved by our customers.
