30t Industry Steel Welding Frame Coil Transfer Trolley used Material Transport Popular
30t Industry Steel Welding Frame Coil Transfer Trolley used Material Transport Popular
The 30t Industry Steel Welding Frame Coil Transfer Trolley ,we designed different wheels in order to let this kind of coil transfer car can running on rails or ground directly.The Industry Steel Welding Frame Coil Transfer Car is can be connected by tow bar or towing hook to pull or push by other engine, such as tractor,winch, forklift,rail cart, etc; The Factory Coil Transportation also can be designed and added handrail to push or pull by human. With the advantages of low cost, free turning radius, large capacity, and so on.The Long lifetime bay transfer cable reel powered Coil Rail Car for sale can be used in not short distance transportation, it has no limited using frequency.All can be customized as per customers’ requirement.And our business is meeting your business need, hope our professional team can help you well with rich experience.
Advantage of the 30t Industry Steel Welding Frame Coil Transfer Trolley used Material Transport
1.The kind of powered Coil Rail Car is with high level automation
2.Excellent gear reducer and motor with high quality, assemblied together perfectly
3.Safe devices are installed in the powered coil rail car
4.Remote control can be equipped together to operate the powered coil rail car well
5.Customization can be supported for the powered Coil Railway Cart
6.The kind of powered coil rail car is with large capacity and high quality
7.The kind of powered coil rail car can be applied in various occasions as high temperature, easy explosion, ponding, dust, scrap iron
8.The hydraulic lifting device can be equipped as per customers' demand
9.The V frame can be installed for rounded material as per your need
10.The powered coil rail car is with high using frequency and low cost
11.long lifetime, no limited time.
12.The running distance of this kinds powered Transfer Car is not limited
13.The powered coil rail car is no strict requirement for the rails

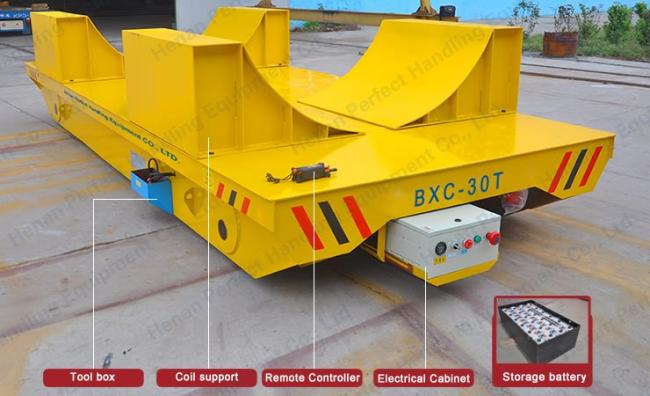

Main parts of the 30t Industry Steel Welding Frame Coil Transfer Trolley used Material Transport
Technical Parameters of the 30t Industry Steel Welding Frame Coil Transfer Trolley used Material Transport
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
| Roated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Sunning speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor power(KW) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery capacity(AH) | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running time | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Max wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Max wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |

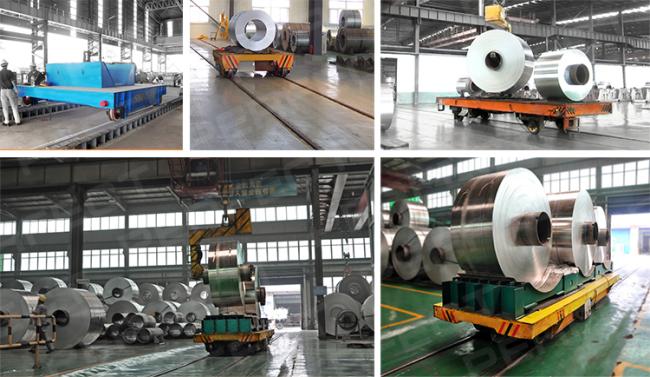

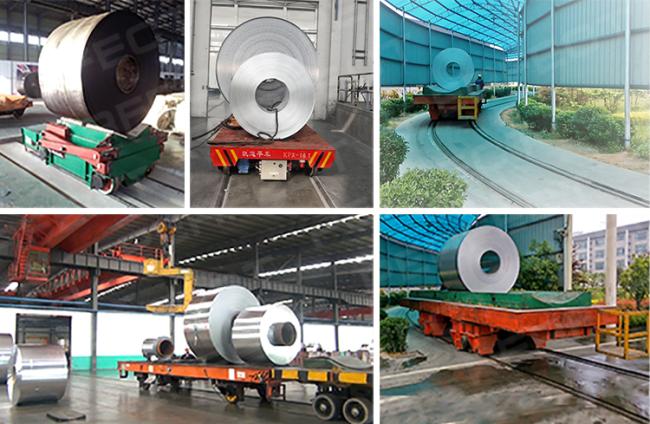

Application and Usage
For material transport: coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mould, beam, container, heavy equipment, Aluminum product, compressor, polycrystalline silicon, motor, coil, scrap, pallet etc.The coil transfer car be used to transfer heavy material or equipment in many industries. such as factory, warehouse, steel plant, aluminum factory, plastic pipes factory, metallurgy, shipyard, steel mills, coal, mining and processing industries, and so on.Its application range includes: port transport, car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, nuclear energy, hydraulic engineering, etc.
