2T battery transfer cart power line trolley used for transfer heavy cargo or equipment
Price:
USD 1000~20000SET
MOQ:
1 set
Delivery Time:
20 wok days after received balance payment
Brand:
PERFECT
Product Description

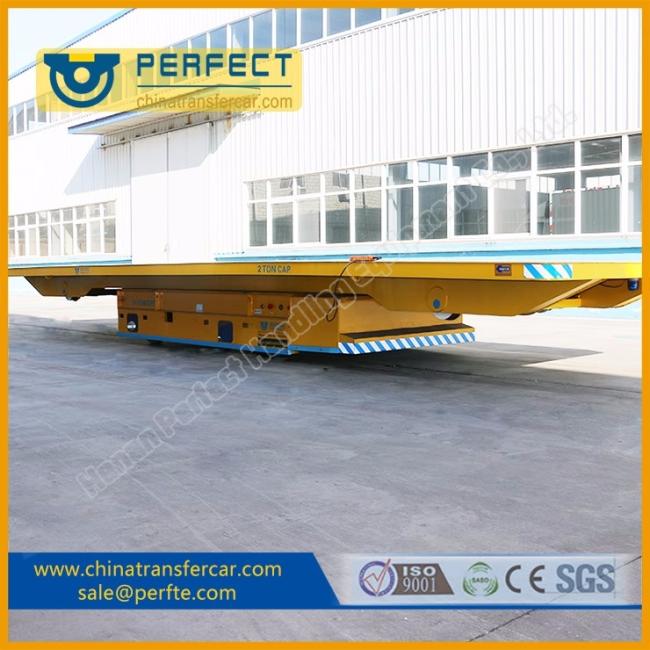

2T power line trolley used for transfer heavy cargo or equipment
This power line trolley is usually used at ship yard, plant and factory, certain production line. The power line trolley could get power from outside or from the battery. The power line trolley was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. power line trolley construction is based on our world renowned die power line trolleys and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our power line trolley is available in a number of configurations specifically designed to suit the needs of our customers.
Technical Parameter of power line trolley
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
NOTES:
- Flat deck or fixtures for transporting special payload;
- Custom deck configurations may include lift, tilt, or rotate function;
- Payload from 1 ton to 300 tons;
- Fixed speed or variable speed capabilities;
- On board charging is available if battery drives;
- With forward or backing driving;
- Options for automatic control;
- Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
Technology Progress of power line trolley
Application Sites of power line trolley
Package of power line trolley
Our power line trolley not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. The power line trolley body is packed with tarp, and the wheel and parts of the power line trolley will be packed with wooden case. According the table size and quantity, the power line trolley would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
