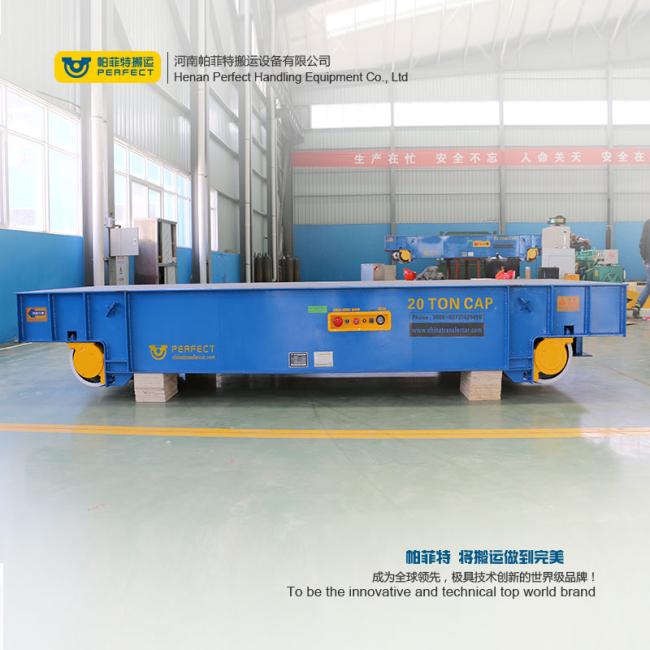

Battery Powered Transfer Cart for Dies Transport Carriages on Double Rails
This Battery Powered Transfer Cart is usually used at ship yard, plant and factory, certain production line. The Battery Powered Transfer Cart could get power from the battery. The battery is installed inside the cart. The Battery Powered Transfer Cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. Battery Powered Transfer Cart construction is based on our world renowned die Battery Powered Transfer Carts and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our Battery Powered Transfer Cart is available in a number of configurations specifically designed to suit the needs of our customers.
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
NOTES:
- With forward or backing driving;
- Options for automatic control;
- Payload from 1 ton to 300 tons;
- Fixed speed or variable speed capabilities;
- On board charging is available if battery drives;
- Flat deck or fixtures for transporting special payload;
- Custom deck configurations may include lift, tilt, or rotate function;
- Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
- The Battery Powered Transfer Cart can run on the C-form track or S-form track and L-form track;
