5 ton towed transfer cart trailer industrial transport
Price:
USD 3000~7800 SET
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
5 ton towed transfer cart
Product Description
5 ton towed transfer cart trailer industrial transport
The 5 ton towed transfer cart trailers is important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. The 5 ton towed transfer cart trailers cart has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more roller bed trailers could be towed by one tractor. The 5 ton towed transfer cart trailers is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor.
Technical Parameters of 5 ton towed transfer cart
| Model | BWT-2t | BWT-5t | BWT-10t | BWT-20t | BWT-30t | BWT-45t | BWT-60t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 30 | 45 | 60 |
| Table Size (mm) | 2000*1500 | 2500*1500 | 3000*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height (mm) | 500 | 600 | 700 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 | 559*254 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire |
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | Customized | Customized | Customized | Customized | Customized | Customized |
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Design Requirement Of 5 ton towed transfer cart
The load capacity, table size, color of the roller bed trailers all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.

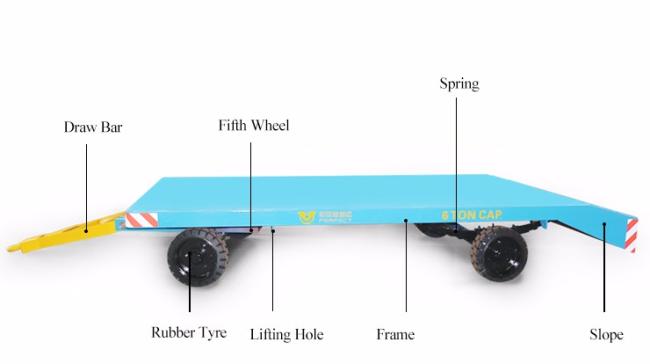

Detailed Image Of roller bed trailers
