Heavy dynamics steerable rail transfer cart Heavy Duty Plant Trailer with hydraulic lifting
Price:
USD 1000~15000 SET
MOQ:
1set
Delivery Time:
20 work days after received balance payment
Brand:
PERFECT
Product Description
Heavy dynamics steerable rail transfer cart with hydraulic lifting
Product Description
The BXC series Railway Steerable Cartis powered by battery. The battery is installed inside the car. The BXC series Railway Steerable Cartis able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track.The BXC series Railway Steerable Carthas been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. The BXC Railway Steerable Cart is available in inflammable and explosive environment or used as ferry car. The BXC series Railway Steerable Cart is suitable for long distance transportation and low frequency, since its travel distance is unlimited and low requirement to the track.
Technical Parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Detailed Images

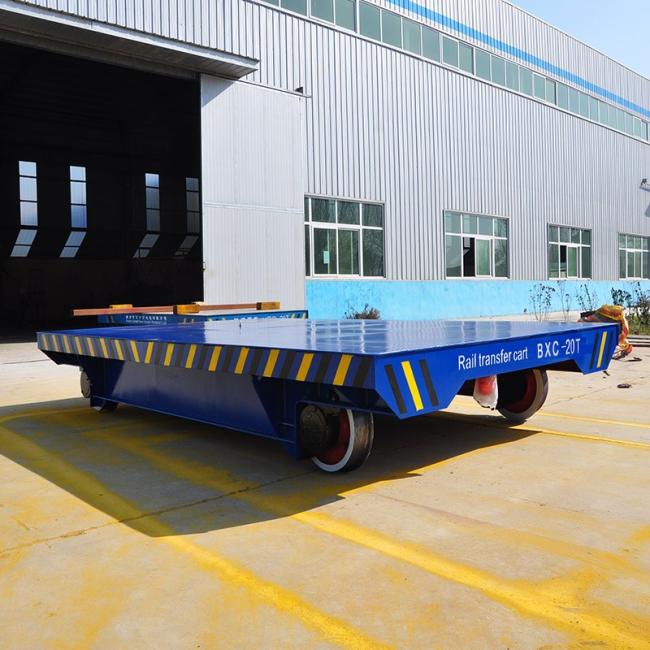

Detailed Image Of Railway Steerable Cart
Components Of Railway Steerable Cart
Functions & Advantages Of Railway Steerable Cart
- The Railway Steerable Cartis Anti-high temperature,Anti-high explosion;
- The Railway Steerable Cartis powered by battery;
- With lifting holes, Railway Steerable Cartis convenient to shipment;
- The Railway Steerable Carthas a feature of stable start, big starting power, long lifetime;
- The Railway Steerable Cartcan run on the C-form track or S-form track and L-form track;
- Running distance of Railway Steerable Cartis unlimited;
- Safe and convenient operation is available for this Railway Steerable Cart;
- High using frequency for Railway Steerable Cart.
Application Site
Application Sites Of Railway Steerable Cart
The Railway Steerable Cartis mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
Packaging & Shipping
- The Railway Steerable Cartbody is packed with tarp, the Railway Steerable Cartwheel and parts will be packed with wooden case.
- For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the Railway Steerable Cartis beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
- Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
Certifications
Our Services
- Our commitment: The load bearing safety factor of the Railway Steerable Cartis no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our Railway Steerable Cartcan't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
