Stainless steel Industrial Transfer Trolley / heavy duty railway motorized transfer trolley
Stainless steel heavy duty railway motorized transfer trolley

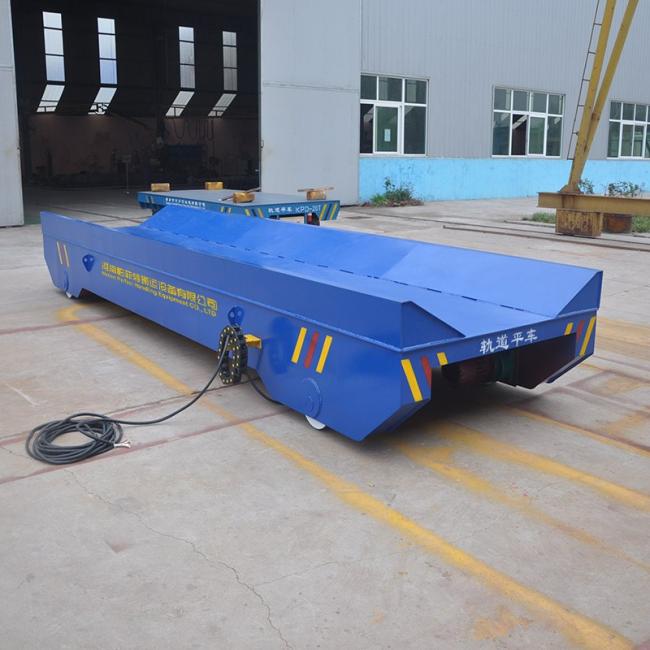

Stainless steel heavy duty railway motorized transfer trolleyis usually used at ship yard, plant and factory, certain production line. The railway motorized transfer trolley is powered by trailing cable. The railway motorized transfer trolley was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. railway motorized transfer trolley construction is based on our world renowned die railway motorized transfer trolleys and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our railway motorized transfer trolley is available in a number of configurations specifically designed to suit the needs of our customers.
| Model | BTL-2t | BTL-20t | BTL-50t | BTL-100t | BDGS-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) |
0-20
|
|||||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
NOTES:
- Flat deck or fixtures for transporting special payload;
- Custom deck configurations may include lift, tilt, or rotate function;
- Payload from 1 ton to 300 tons;
- Fixed speed or variable speed capabilities;
- With forward or backing driving;
- Options for automatic control;
- Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
- 1. Moving the steel plate from storage area to cutting process area by crane;
- 2. According to the cutting drawing cutiting steel plate by the numercial control cutting machine;
- 3. The mobile welding machine is used for precise welding of diferent parts of the frame;
- 4. Fine grinding and weld inspection of the weld joint;
- 5. For every car primer spray, toccat, perfect antirust, ensure th ebeauftiful appearance;
- 6. Installation of the whole internal parts of the wheel and the car body;
- 7. Commissioning the vehicle operation and electrical parts, then test after completion of commissoning:
- 8. Zero load test and load test before shipping.
