Easy operated in-plant 20 ton transfer cart rail transporter
Price:
USD 3000~8000 set
MOQ:
1set
Delivery Time:
20 work days after received balance payment
Brand:
20 ton transfer cart rail transporter
Product Description

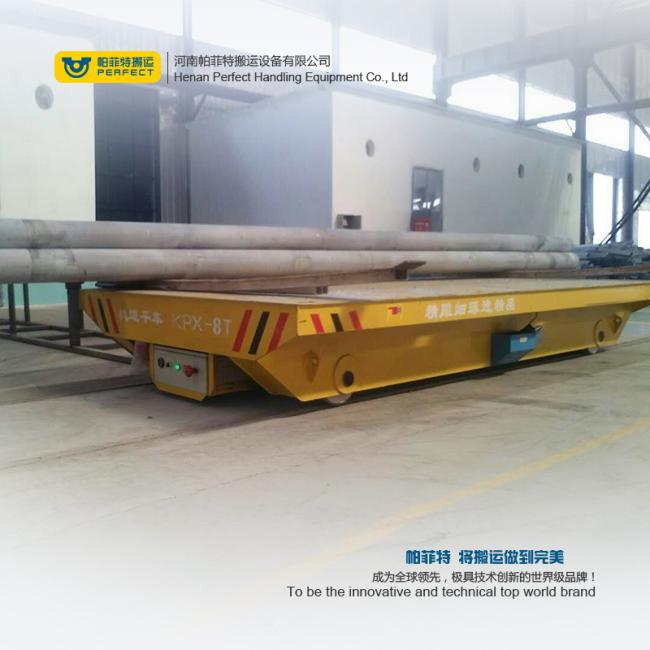

Easy operated in-plant 20 ton transfer car rail transporter
The in-plant transfer cart can be powered by battery,low voltage rail,cable drum,trailing cable.There are mounted V-shape and roller on in-plant transfer cart to protect the coil from falling down from the in-plant transfer cart.The V-shape supporting can be designed according to coil diameter,and roller distance can be adjusted as per coil die.V-shape supporting and roller can be removable from the in-plant transfer cart.We can design coil in-plant transfer cart according to the workshop application,material dimension.It can be applied in all kinds of occasion even severe working environment.
Technical Parameter of in-plant transfer cart
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

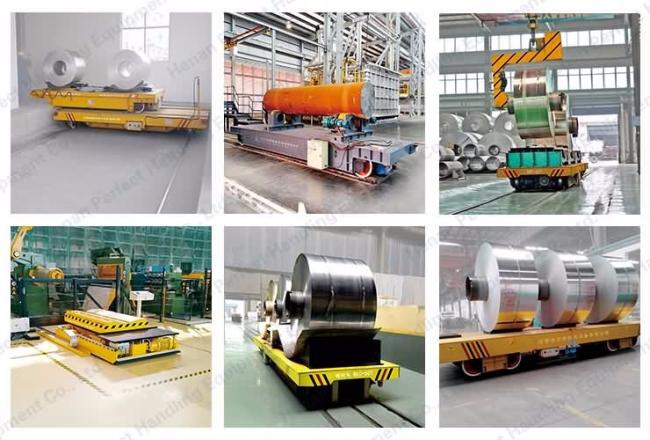

Customized of in-plant 20 ton transfer cart
