25 ton transfer cart battery powered large table trackless transfer car
Price:
USD 4000~7800set
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
25 ton transfer cart battery powered large table trackless transfer car
Product Description

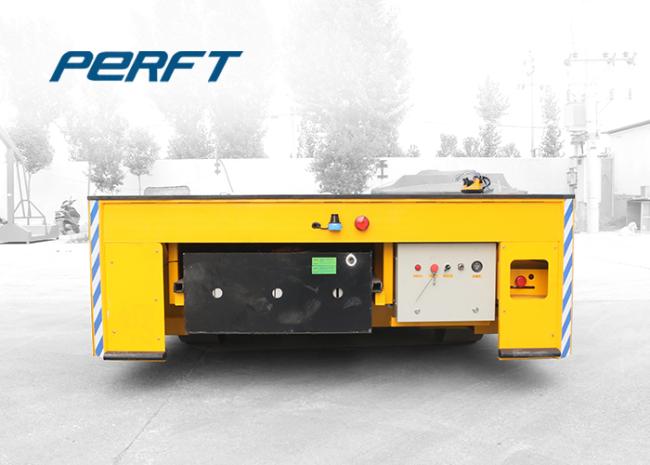

25 ton transfer cart battery powered large table trackless transfer car
Description of large table trackless transfer car
This 25 ton transfer cart is usually used at ship yard, plant and factory, certain production line. The 25 ton transfer cart could get power from outside or from the battery. The 25 ton transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. 25 ton transfer cart construction is based on our world renowned die 25 ton transfer carts and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our 25 ton transfer cart is available in a number of configurations specifically designed to suit the needs of our customers.
Technical Parameter of 25 ton transfer cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Functions & Advantages of 25 ton transfer cart
- Flat deck or fixtures for transporting special payload;
- Custom deck configurations may include lift, tilt, or rotate function;
- Payload from 1 ton to 300 tons;
- Fixed speed or variable speed capabilities;
- The 25 ton transfer cart can run on the C-form track or S-form track and L-form track;
- Running distance of 25 ton transfer cart is unlimited;
- With forward or backing driving;
- Options for automatic control;
- Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
