Customized 1-80 ton battery transfer cart for transport coil and dies
Price:
USD 3000~7600 set
MOQ:
1set
Delivery Time:
20 work days after received balance payment
Brand:
1-80 ton battery transfer cart
Product Description

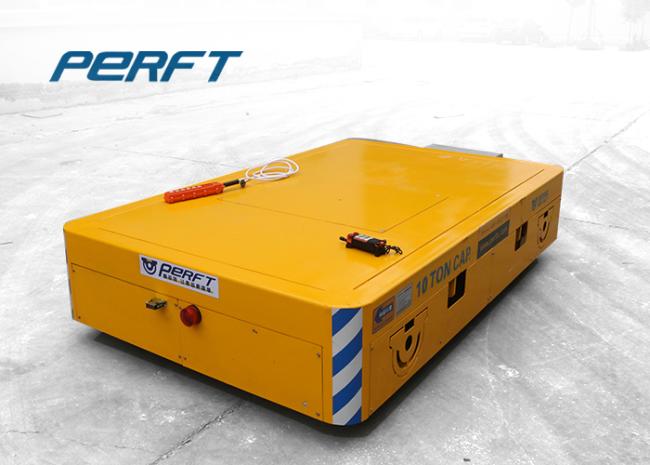

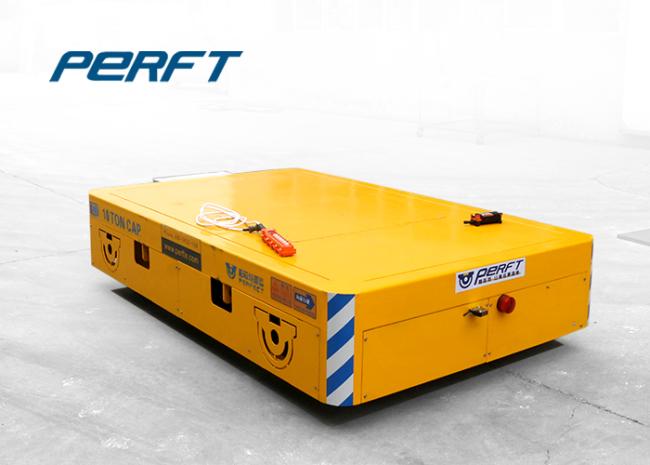

Customized 1-80 ton battery transfer cart for transport coil and dies
This 1-80 ton battery transfer cart is usually used at ship yard, plant and factory, certain production line. The industry 1-80 ton battery transfer cart could get power from outside or from the battery. The 1-80 ton battery transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The 1-80 ton battery transfer cart construction is based on our world renowned battery transfer cart and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our industry battery transfer cart is available in a number of configurations specifically designed to suit the needs of our customers.
Technical Parameter of industry battery transfer cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
NOTES:
- Flat deck or fixtures for transporting special payload;
- Custom deck configurations may include lift, tilt, or rotate function;
- Payload from 1 ton to 300 tons;
- Fixed speed or variable speed capabilities;
- On board charging is available if battery drives;
- With forward or backing driving;
- Options for automatic control;
- Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
