Cable Reel Powered Platform Automatic Guided Carts / Battery Transfer Carriage

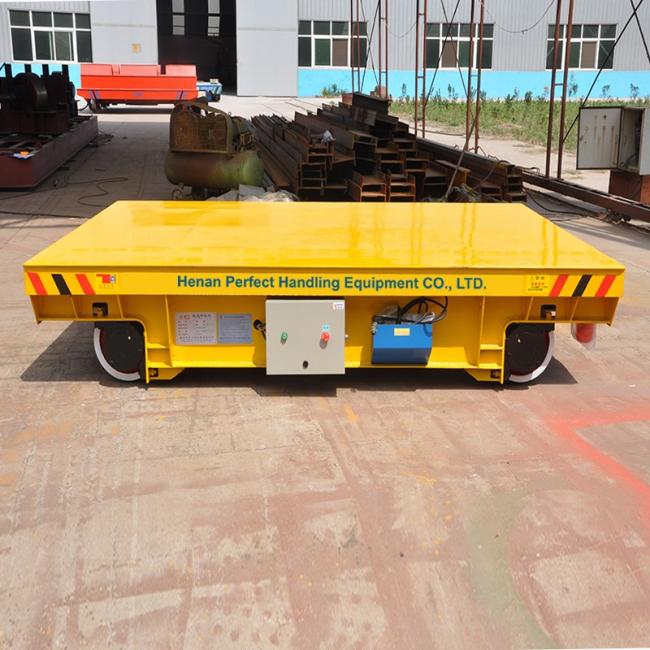

cable reel powered platform transfer cart mounted on rails
This transfer platform mounted on rails is usually used at ship yard, plant and factory, certain production line. The transfer platform mounted on rails is powered by the cable drum. The transfer platform mounted on rails was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. transfer platform mounted on rails construction is based on our world renowned die transfer platform mounted on railss and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our transfer platform mounted on rails is available in a number of configurations specifically designed to suit the needs of our customers.
NOTES:
- Flat deck or fixtures for transporting special payload;
- Custom deck configurations may include lift, tilt, or rotate function;
- Payload from 1 ton to 300 tons;
- Fixed speed or variable speed capabilities;
- On board charging is available if battery drives;
- With forward or backing driving;
- Options for automatic control;
- Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
