No Powered Cast Steel Plate Material Transfer Cart Trailer For Workshop Transfer
No Powered Cast Steel Plate Material Transfer Cart Trailer For Workshop Transfer

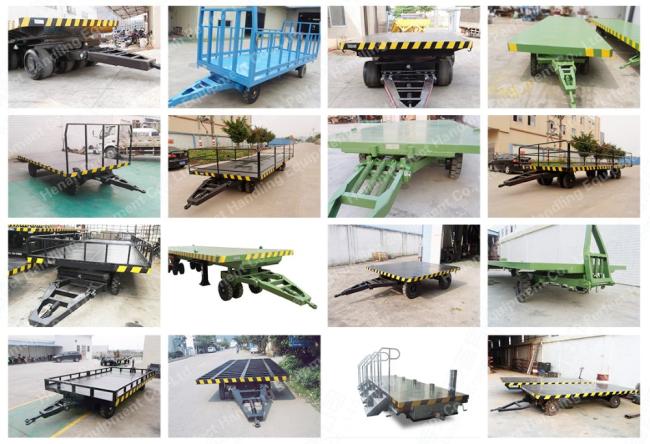

no powered transfer trailer is important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. The no powered transfer trailer cart has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more steel plate transfer trailer could be towed by one tractor. The no powered transfer trailer is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor.
| Model | 2t | 5t | 10t | 20t | 30t | 50t | 60t | 150t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 30 | 50 | 60 | 150 |
| Table Size (mm) | Customized | |||||||
| Wheel Quantity | According to the load capacity and table size | |||||||
| Tire specification | Air core tire or solid tire | |||||||
| Frame material | Structural steel | |||||||
| Color | Customized | |||||||
| Surface Treatment | Anti rust primer | |||||||
| Guard bar | Optional | |||||||
The load capacity, table size, color of the steel plate transfer trailer all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.
