Customized large capacity ladle transfer vehicle applied in steel factory
Price:
USD 5000~8500
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
ladle transfer vehicle applied in steel factory
Product Description
Customized large capacity ladle transfer vehicle applied in steel factory
Customized anti-heat production line ladle transfer vehicle applied in steel factory , it makes the AC electricity power is transformed into AC 36v two-phas and are respectively connected to the two rails.Then theladle transfer vehicle applied in steel factory conduct the AC 36v on rail into the electrical appliance box at the bottom of the ladle transfer vehicle applied in steel factory, And then the AC 36v is transformed into DC 36v and then control the DC motor through the DC control system to make the ladle transfer vehicle applied in steel factory start, stop, go forward and backward and adjust the speed and so on.

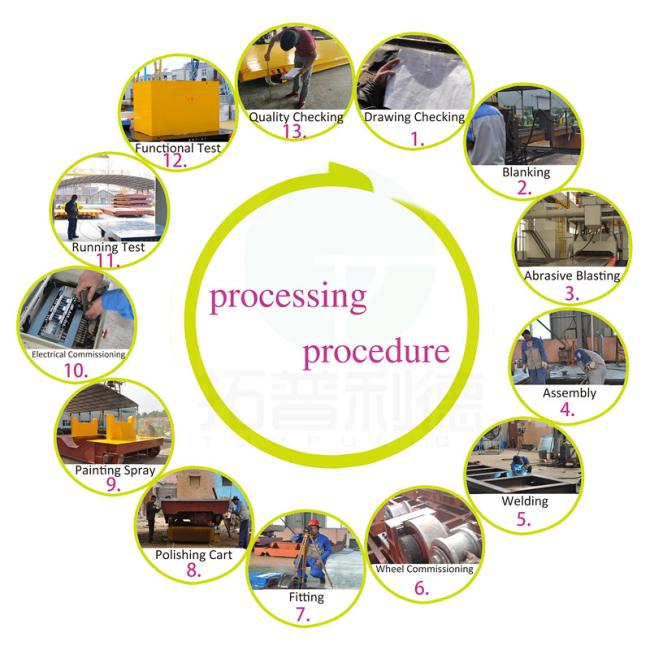

Processing of ladle transfer vehicle applied in steel factory
Application of ladle transfer vehicle applied in steel factory
ladle transfer vehicle applied in steel factory can be used to transfer heavy material or equipment in many industries. such as factory, warehouse, steel plant, aluminum factory, plastic pipes factory, mold shop, metallurgy, shipyard, steel mills, coal, docks, mining and processing industries, and so on.
Usage characteristics of ladle transfer vehicle applied in steel factory
- 1.The latest and the most popular factory handling equipment for the ladle transfer vehicle applied in steel factory ;
- 2.The ladle transfer vehicle applied in steel factory gets power from rail;
- 3.The 50t steel ladle vehicle , its load 1-300tons and can be customized;
- 4.Cast steel wheel with durable and long lifetime for the 50t steel ladle vehicle ;
- 5.Box girder type frame which not easy to deformation for the 50t steel ladle vehicle ;
- 6.The 50t steel ladle vehicle can be applied in the high use frequency;
- 7. The turning can be realized flexible without cable for the 50t steel ladle vehicle
Parameter List of ladle transfer vehicle applied in steel factory
|
Model
|
2T | 10T | 20T | 30T | 50T | 63T | 150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Transformer Power(KVA) | 3 | 5 | 6.8 | 10 | 10 | 20 | 30 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
