Heavy load equipment sliding wire powered electric cargo transfer vehicle on track
Price:
USD 2000~7600 SET
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
Heavy load equipment sliding wire powered electric cargo transfer vehicle on track
Product Description
Heavy load equipment sliding wire powered electric cargo transfer vehicle on track
The kind of sliding wire powered electric cargo transfer vehicle is so popular and widely used in various occassions.electric vehicle is suitable to be used in the bad environment,suach as high-temperature and so on. with the simple structure and low cost, it not so strict requirement on the construction of the rails,it is the first choice for the assembely lines of the workshops. About that, our company have professionsal team,and specialized study ways, and it is about 15 historys that we insist on the item. up to now, we can provided the largest roated load---300T.
Detailed Image Of electric cargo transfer vehicle
Processing Line Of electric cargo transfer vehicle
Technical Parameters Of electric cargo transfer vehicle
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Why choose us?

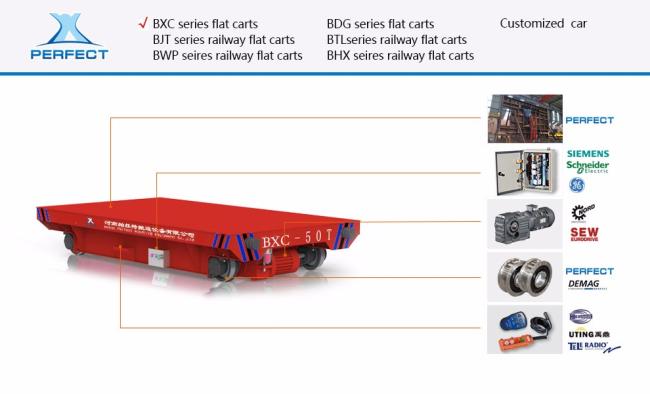

Components Of electric cargo transfer vehicle
Functions & Advantages Of electric cargo transfer vehicle
- electric cargo transfer vehicle is Anti-high temperature
- Electric Transfer Car is powered by battery, traveling cable, rail, generator or other way
- With lifting holes, Electric Transfer Car is convenient to shipment
- The Electric Transfer Car has a feature of stable start, big starting power, long lifetime
- The Electric Transfer Car can run on the L-form track or S-form track or curved track
- Running distance of Electric Transfer Car is unlimited
- Safe and convenient operation is available for Electric Transfer Car
- High using frequency for Electric Transfer Car
- Electric Transfer Car is suitable for bad environment and explosion environment
- The Electric Transfer Car is convenient for operation and maintaince

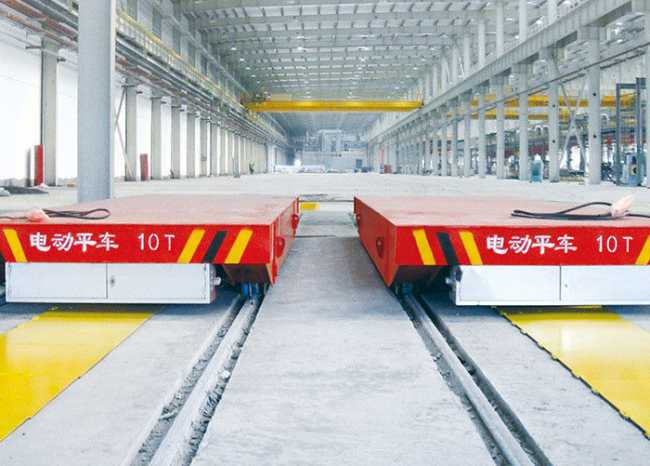

Application Sites Of electric cargo transfer vehicle
Packaging & Shipping
Certifications
Our Services
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
