motorized heavy load transfer trolley on track for warehouse handling
Price:
USD 2000~7200set
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
heavy load transfer trolley
Product Description

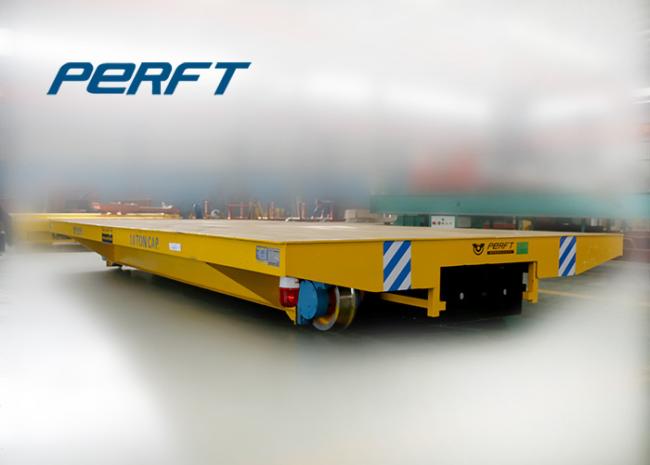

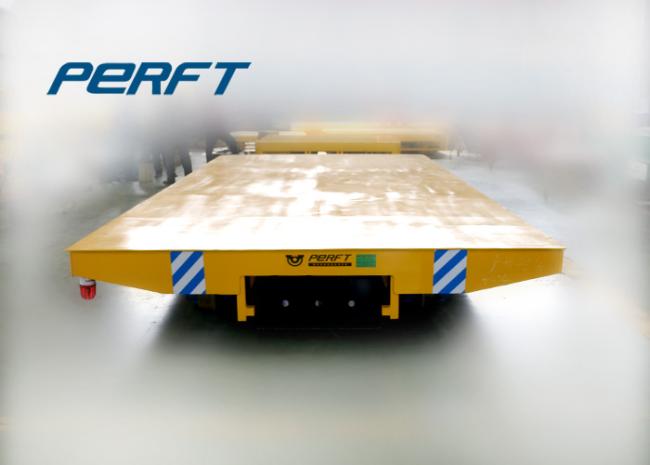

motorized heavy load transfer trolley on track for warehouse handling
The transfer trolley on track is powered by battery. The BXC series transfer car is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track.
Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of transfer trolley on track . Our company has been founded for 13 years and has become enterprise in the motorized transfer trolley business.
Technical Parameters Of transfer trolley on track
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
After-sales Service
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
