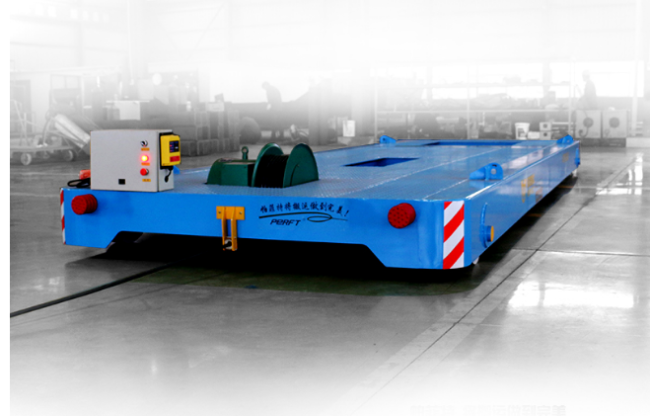

20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails
20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails
The supply power of the 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails is cabled drum. You can also choose the supply power ways,such as battery powered,rail powered,cable drum motorized,cable reel powered,etc.The capacity and table size of the 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails can be customized.The V/U shape can be added if need.The roller support can be designed of the 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails.The battery capacity(Ah) of the 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails is 180-600.The Ground Clearance(mm) of the 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails is 50mm.
Advantage and Functions of the 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails
1.The Rail Flat Transfer Car is Anti-high temperature,Anti-high explosion
2.The supply power ways can be customized.such as:rail powered,cable drum,cable reel,battery powered...
3.With lifting holes, the Rail Flat Transfer Car is convenient to shipment
4.The capacity and table size can be customized
5.No limitation of the C-form track or S-form track
6.Industrial Large Motorized Transport Carts is safe and convenient operation is available for cart
7.Heavy Load Rail Industrial Handling high using frequency for cart.
8.Can add mold and die to the rail transfer cart if need.
9.Add V/U shape can be a good choice for coils transportation.
10.Add roller device for cylindrical goods transportation.
11.Add groove shape for hot melton transportation if need.

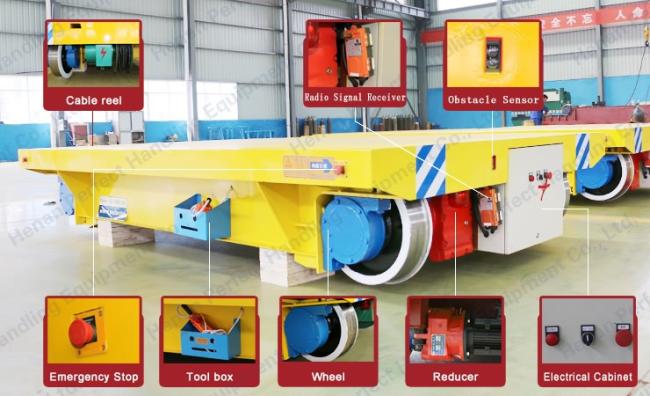

Main Componences of the 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails
Technical Table of the 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Application and Usage of the 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails
The 20 ton cable drum power electric flat Rail Transfer Cart on factory warehouse rails is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
