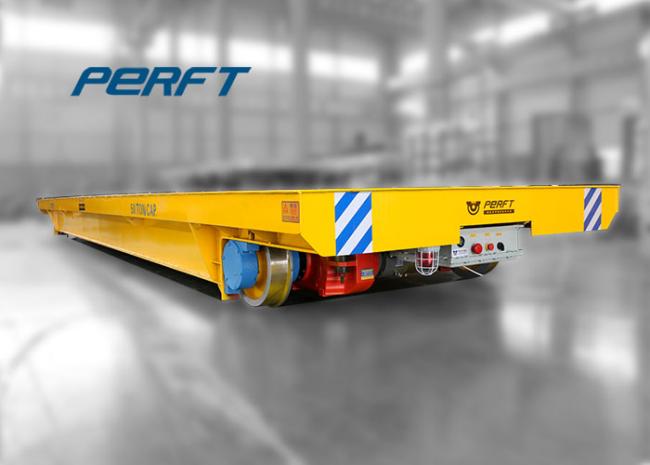

150 T Industrial Large Motorized Heavy Duty Plant Trailer , Material Transfer Trolley
150 T Industrial Large Motorized Heavy Duty Plant Trailer , Material Transfer Trolley
The 150t Industrial Large Motorized Transport Carts-cable drum power electric flat cart is powered by cabled drum. The power source 380V alternating-current is supplied to the traction motor by cable. Cable is collected and released by coiling device mounted underneath the car. The transfer cart can realize full automatic operation by PLC system. The cart can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make it popular for workshop transportation. The cart can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the cart needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.
Advantage and Functions of the 150t Industrial Large Motorized Transport Carts-cable drum power electric flat cart
1.The Rail Flat Car is Anti-high temperature,Anti-high explosion;
2.The powered transfer cart is powered by cable drum;
3.With lifting holes, the Rail Flat Car is convenient to shipment;
4.The cable drum power electric flat cart has a feature of stable start, big starting power, long lifetime;
5.The steel plate electric transfer cart can run on the C-form track or S-form track;
6.The material handling transfer carts running distance of cart is unlimited;
7.Industrial Large Motorized Transport Carts is safe and convenient operation is available for cart;
8.Heavy Load Rail Industrial Handling high using frequency for cart.

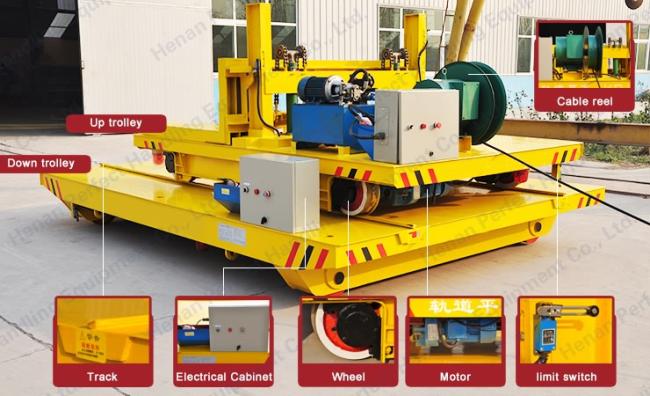

Main Componences of the 150t Industrial Large Motorized Transport Carts-cable drum power electric flat cart
Technical Table of the 150t Industrial Large Motorized Transport Carts-cable drum power electric flat cart
| Rated Load(t) | 2 | 10 | 20 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Ground Clearence(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(KN) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Application and Usage of the 150t Industrial Large Motorized Transport Carts-cable drum power electric flat cart
The Customized Cable Drum Power Electric Flat Cart for Industrial Material Handling is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
