no use time limit 20 ton diesel engine powered transfer cart
no use time limit 20 ton diesel engine powered transfer cart

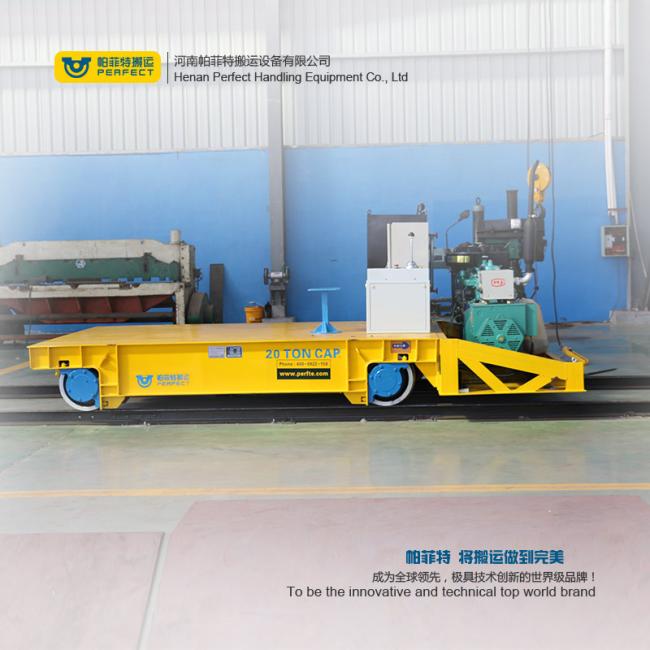

This 20 ton diesel engine powered transfer cart is usually used at ship yard, plant and factory, certain production line. The 20 ton diesel engine powered transfer cart for factory could get power from outside or from the battery. The electric flat rail wagon for factory was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. diesel engine electric motor for factory construction is based on our world renowned die electric flat rail wagon for factorys and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our 20 ton diesel engine powered transfer cart for factory is available in a number of configurations specifically designed to suit the needs of our customers.
| Model | BDGS-2t | BDGS-20t | BDGS-50t | BDGS-100t | BDGS-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 30 | 30 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
