Carbon Steel Material Heavy Duty Handling Equipment / Material Transfer Cart
Carbon Steel Heavy Duty Handling Equipment To Transfer Molten Steel

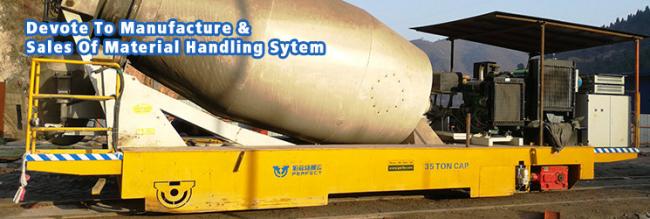

The Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel is specially designed to transfer the high-temperature ladle.Owing to its strict requirement on safety & anti-high temperature, so material, driving system & electrical parts will be specially designed.In order to prevent spattering of molten steel or steel slag and reduce inertia, the Rail Ladle Transfer Car motor designed for slow start and stop .What’s more,the hot metal ladle transfer car body is equipped with heat insulation material to hinder the inclusion from high temperature radiation. A dual transmission system is adopted of the Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel to ensure that one set of systems can complete a working cycle in the event of failure of the other.
Main Components of Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel
Advantages of Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel
1. The Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel is a Rail Ladle Wagon
2. The Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel is Powered by batteries, low pressure tracks, towed cables, and cable reels.
4. The Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel is Hoisting holes for easy transportation
5. The Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel is Steady starting, large starting force and long life.
6. The Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel Operate on C-shaped or S-shaped and L-shaped orbits
7. The rolling distance of the Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel is infinite.
8. The Ladle Trolley can be operated safely and conveniently
9. High frequency of the Ladle Car
Technical parameters of Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
Application and usage of Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel
The Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
Processing Line of Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel
Packaging & Shipping of Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel
The Heavy Load Industrial Handling body is packed with tarp, the cart wheel and parts will be packed with wooden case.
The Customized Die Moving Equipment for Ladle Industrial Cart to Transfer Molten Steel lenght is less than 5.9m, the width is less than 2.2m. Industrial Large Motorized Transport Carts will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the cart is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
