Steel Plant Electric Rail Ladle Transfer Car For Ladle Slag Transportation
Steel Plant Ladle Electric Rail Transfer Trolley for Mold and Die Handling Equipment

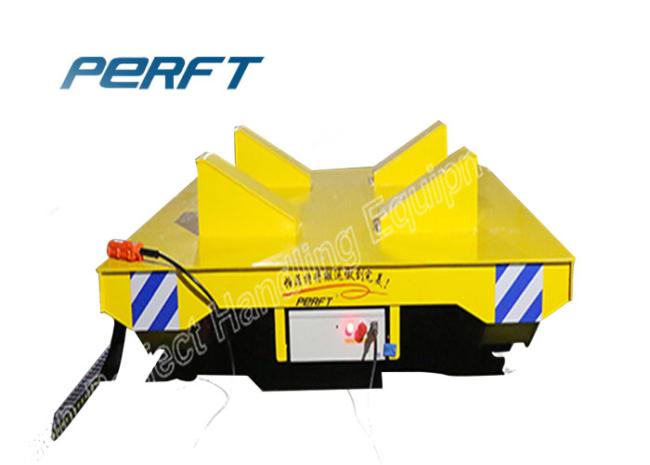

The Steel Plant Ladle Electric Rail Transfer Trolley for Mold and Die Handling Equipment is cable drum powered.The U-shape is added to the ladle transfer car for the ladle transportation.The Ladle Transfer Car is wireless remote control.
Advantages
1. Rail Ladle Wagon
2. Water-proof
3. Added the explosion-proof equipment
4. Powered by batteries, low pressure tracks, towed cables, and cable reels
5. Steady starting, large starting force and long life
6. For the hot melton material transportation
7. Can be used for foundry industrial
Main Components
Technical parameters
| Rated Load(t) | 2 | 10 | 20 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø350 | Ø400 | Ø500 | Ø500 | Ø600 | Ø600 | Ø600 | Ø600 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(KN) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 3.8 | 5.5 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 |
343.8 |
Application
The Steel Plant Ladle Electric Rail Transfer Trolley for Mold and Die Handling Equipment is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
