Rail Guided Vehicle With Anti Explosion Transfer Cart Steel Plant Die Bogie
high temperature resistance ladle transfer car with anti explosion transfer cart steel plant die bogie

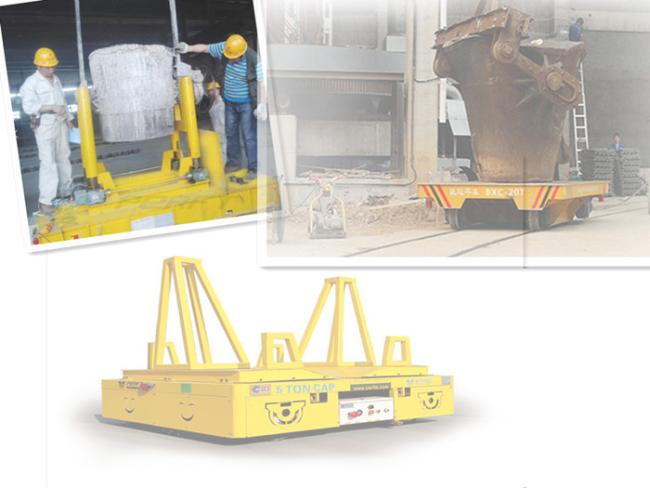

The high temperature resistance ladle transfer car with anti explosion transfer cart steel plant die bogie is specially designed to transfer the high-temperature ladle.The ladle support is customized according to your requirements.The Explosion-proof devices and thermal insulation designs are exist.
Advantages
- Explosion-proof devices
- Wireless remote control
- Thermal insulation material
- High temperature resistant material
- Frequently used
- Rolling distance is infinite
- Operate on C-shaped or S-shaped and L-shaped orbits
- Steady starting, large starting force and long life.
- The ladle transfer car can be customizable
- Rail ladle transfer car
- Can be combined with the crane
- No running route limitation
Technical parameters
| Model | 2t | 20t | 50t | 100t | 150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | ||
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | ||
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | ||
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | ||
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | ||
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | ||
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | ||
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | ||
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | ||
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | ||
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | ||
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | ||
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | ||
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | ||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | ||
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | ||
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | ||

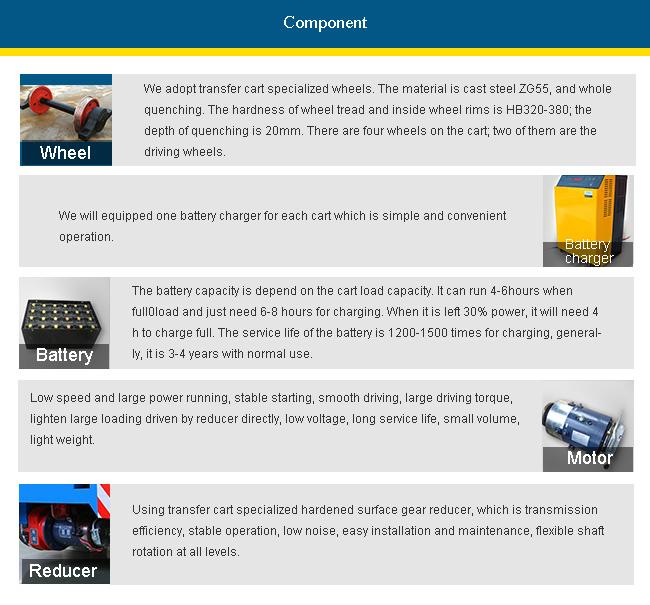

Components
Application

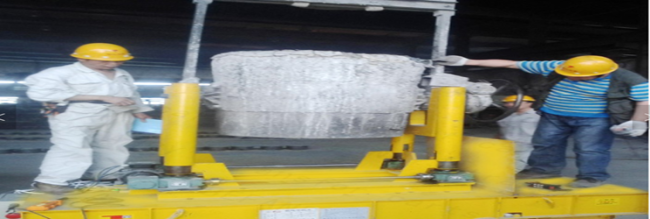

The high temperature resistance ladle transfer car with anti explosion transfer cart steel plant die bogie is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
