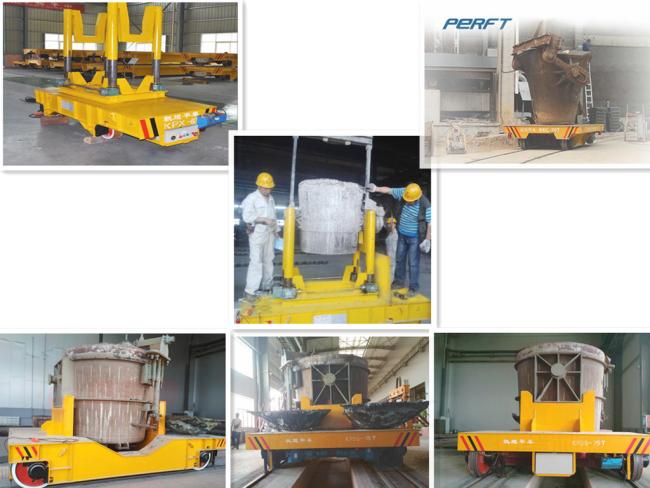

4 Wheel Cable Reel Transport Cart Applied In Hot Metal Ladle And Molten Steel Ladle Steel Factory
4 Wheel Cable Reel Transport Cart applied in Hot Metal Ladle and Molten Steel Ladle Steel Factory
The 4 Wheel Cable Reel Transport Cart applied in Hot Metal Ladle and Molten Steel Ladle Steel Factory is specially designed to transfer the high-temperature ladle.Owing to its strict requirement on safety & anti-high temperature, so material, driving system & electrical parts will be specially designed.In order to prevent spattering of molten steel or steel slag and reduce inertia, the 4 Wheel Cable Reel Transport Cart applied in Hot Metal Ladle and Molten Steel Ladle Steel Factory motor designed for slow start and stop .What’s more,the 4 Wheel Cable Reel Transport Cart applied in Hot Metal Ladle and Molten Steel Ladle Steel Factory body is equipped with heat insulation material to hinder the inclusion from high temperature radiation.

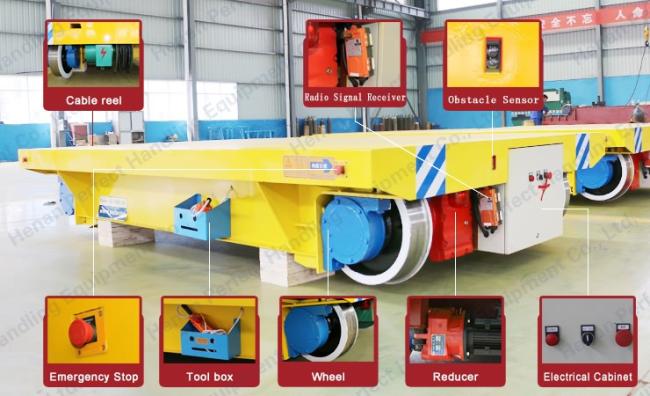

Main Components of 4 Wheel Cable Reel Transport Cart applied in Hot Metal Ladle and Molten Steel Ladle Steel Factory
Advantages of 4 Wheel Cable Reel Transport Cart applied in Hot Metal Ladle and Molten Steel Ladle Steel Factory

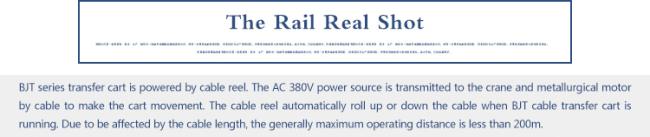

1.Cable reel powered.
2.Running on the rails.
3.The running distance can according to the cable reeel length.
4.Convenient an easy operatation for frequency cargo transport.
5.Steady starting, large starting force and long life.
6.Operate on C-shaped or S-shaped and L-shaped orbits
7.The capacity and table size can be customized according to your requirements.
8.Can add ladle support to transport hot melton.
9.Explosion-proof devices and insulating materials.
Technical parameters of 4 Wheel Ladle Transport Car applied in Hot Metal Ladle and Molten Steel Ladle Steel Factory
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
Application and usage of 4 Wheel Ladle Transport Car applied in Hot Metal Ladle and Molten Steel Ladle Steel Factory
The 4 Wheel Ladle Transport Car applied in Hot Metal Ladle and Molten Steel Ladle Steel Factory is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
