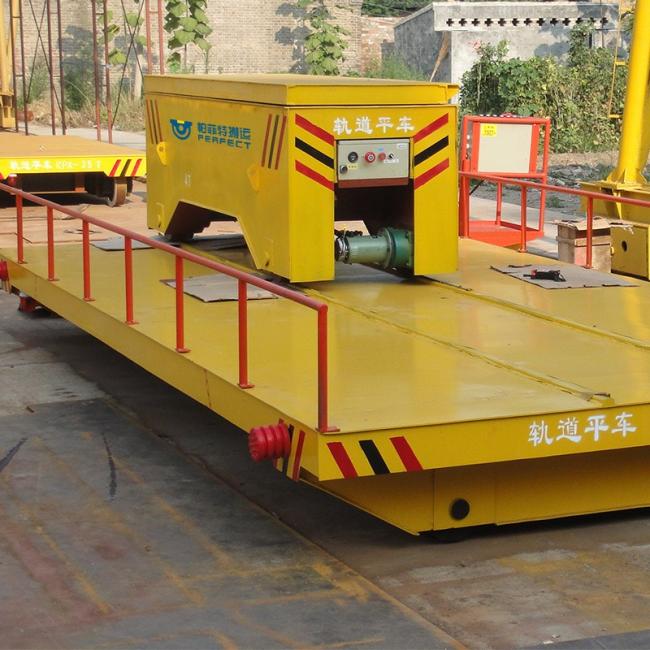

The BHX series transfer cart is powered by the busbar. The alterative current is suppiled consistently to the pulling motor by slide knife taken from sliding contact line through electric contrql system , which makes the car start ,stop, move forward and relize other functions.The sale sliding contact line can be installed in the middle of the tracks or by the outside of the tracks or in the trench or under the roof of the plant .Positing fixture ,lifture, lifting platform, clamping device and other auxiliary device are optional to meet different demands on various occasions. The BHX series busbar powered transfer cart is suitable in inflammable environment and in high requency.
Advantage:
Copared with other transfer cart , it is with low cost and high frequency;
The 50 ton busbar powered transfer cart can be applied in many occasions, such as bad environment, hightemperature,
AC motor,simple structure,not limited for the using time;
This kinds of 50 ton steel transfer cart is powered by busbar, so there is not strict requirement for theconstruction of the railway;
Professional team from Henan Perfect Handling Equipment Co., Ltd
the proper solution can be provided once getting for your inquiry.
The 50 ton steel transfer cart are customized as per your true demand.
| Model | BHX-2t | BHX-20t | BHX-50t | BHX-100t | BHX-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
- The steel frame transfer trailer body is packed with tarp, the steel frame transfer trailer wheel and parts will be packed with wooden case.
- For length is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the steel frame transfer trailer is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
- Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
