20 ton Steerable Electric Flat Rail Transfer Cart with Rail Guided Vehicle for plant material transport
20 ton Steerable Electric Flat Rail Transfer Cart with Rail Guided Vehicle for plant material transport
Wired push button operate rail guided vehicles 36v safe voltage is consist of steel structure frame and wheels and frame, we designed different wheels in order to let this kind of rail guided vehicles can running on rails or ground directly, The 20 ton Steerable Electric Flat Rail Transfer Cart with Rail Guided Vehicle for plant material transport can be connected by tow bar or towing hook to pull or push by other engine, such as tractor,winch, forklift,rail car, etc; The 20 ton Steerable Electric Flat Rail Transfer Cart with Rail Guided Vehicle for plant material transport is also can be designed and added handrail to push or pull by human. With the advantages of low cost, free turning radius, large capacity, and so on.
Functions of 20 ton Steerable Electric Flat Rail Transfer Cart with Rail Guided Vehicle for plant material transport
- Running on the straight railways or on the ‘S’ and arc-shaped railways;
- Running on floor, fround, cement floor directly ;
- Load capacity up to 500ton;
- Simple operation, safety, flexibility, long lifetime, low cost;
- The capacity and table size can be customized;
- The supply power can be customized;
- The Rail Inner Gauge(mm) of the rail guided vehicle is 1200-2000;
- The wheel Base(mm) of the rail guided vehicle is 1200-7000;
- The Wheel Diameter(mm) of the rail guided vehicle is 270-600;
- The Running Speed(min) of the rail guided vehicle is 0-25;
- The Running Distance(m) of the rail guided vehicle is 25-50;

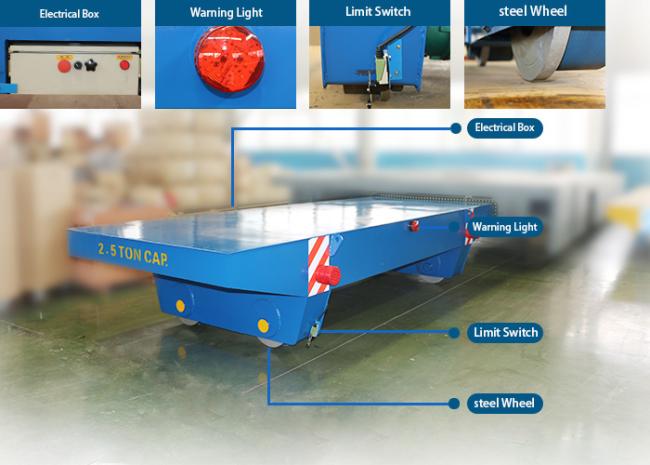

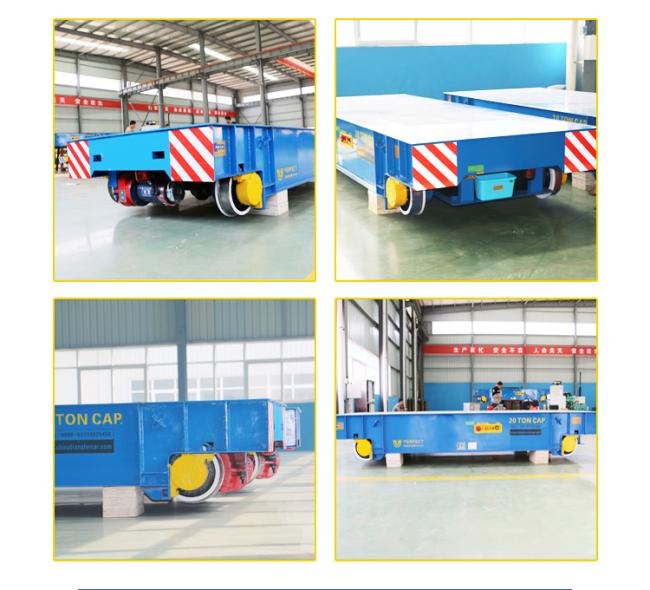

Details of 20 ton Steerable Electric Flat Rail Transfer Cart with Rail Guided Vehicle for plant material transport
Technical parameter table of 20 ton Steerable Electric Flat Rail Transfer Cart with Rail Guided Vehicle for plant material transport
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
Application of 20 ton Steerable Electric Flat Rail Transfer Cart with Rail Guided Vehicle for plant material transport
The 20 ton Steerable Electric Flat Rail Transfer Cart with Rail Guided Vehicle for plant material transport be used to transfer heavy material or equipment in many industries. such as factory, warehouse, steel plant, aluminum factory, plastic pipes factory, metallurgy, shipyard, steel mills, coal, mining and processing industries, and so on.
