steel pipe plant material rail transfer cart transport pallet
Price:
USD 2000~7800 SET
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
rail transfer cart transport pallet
Product Description
steel pipe plant material rail transfer cart transport pallet
Description of rail transfer cart transport pallet
Our company has been founded for 13 years and has become enterprise in the motorized rail transfer cart transport palletbusiness.
This BDG rail transfer cart transport pallet is powered by the rails.The rails need to be insulated in erection.When the running distance is longer than 70m , the transferormer needs to be increased to raise the voltage.The series rail transfer cart transport pallet can run on S shape or Arc shape rails .It is safe and flexible ,but the rails need to be insulated in erection .The series rail transfer cart transport pallet is suitable for heavy duty load , high using frequency and meet full automation demand.

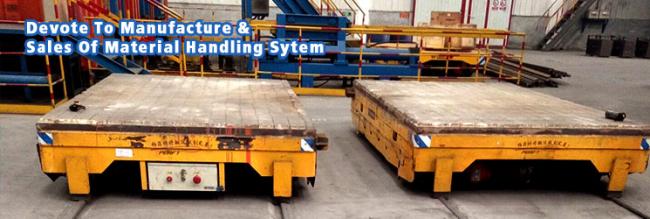

Detailed Image Of rail transfer cart transport pallet
Technical Parameters Of rail transfer cart transport pallet
| Model | BDGZ-2t | BDGZ-20t | BDGZ-50t | BDGZ-100t | BDGZ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 30 | 30 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
