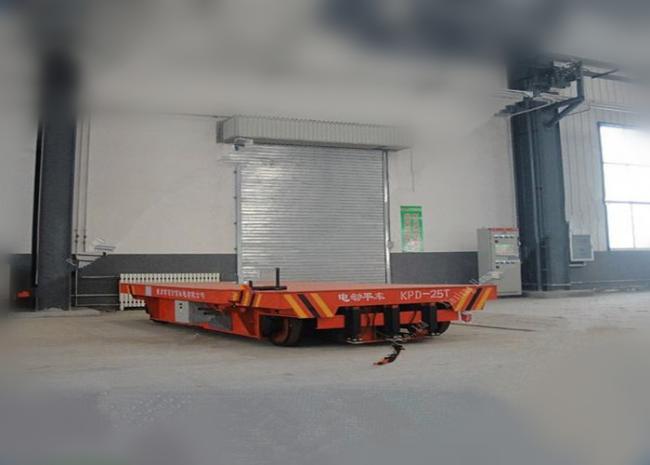

25 T Cargo Freight Rail Guided Transfer Vehicle for Factory Material Transportation
25 T Cargo Freight Rail Guided Transfer Vehicle for Factory Material Transportation
The 25 T Cargo Freight Rail Guided Transfer Vehicle for Factory Material Transportation's Battery driven rail guided vehicles for rail transfer is battery powered .The Battery driven rail guided vehicles for rail transfer. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the Battery driven rail guided vehicles for rail transfer to start, stop, go forward , backward , adjust the speed and so on.
Functions of 25 T Cargo Freight Rail Guided Transfer Vehicle for Factory Material Transportation
1.The Rail Guided Flat Car is Anti-high temperature,Anti-high explosion;
2.The powered Rail Guided transfer cart is powered by cable drum;
3.With lifting holes, the Rail Guided Flat Car is convenient to shipment;
4.The cable drum power electric rail guided flat cart has a feature of stable start, big starting power, long lifetime;
5.The steel plate electric rail guided transfer cart can run on the C-form track or S-form track;
6.The material handling rail guided transfer carts running distance of cart is unlimited;
7.Industrial Large Motorized Rail Guided Transport Carts is safe and convenient operation is available for cart;
8.Heavy Load Rail Guided Industrial Handling high using frequency for cart.
Main Componences of 25 T Cargo Freight Rail Guided Transfer Vehicle for Factory Material Transportation
Technical Table of 25 T Cargo Freight Rail Guided Transfer Vehicle for Factory Material Transportation
| Rated Load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Rail Inner Gauge(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Application and Usage of 25 T Cargo Freight Rail Guided Transfer Vehicle for Factory Material Transportation
The 25 T Cargo Freight Rail Guided Transfer Vehicle for Factory Material Transportation is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
