electrical trackless transfer cart with elevator for material handling
Price:
USD 2000~7800 SET
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
electrical trackless handling transfer cart
Product Description
electrical trackless transfer cart with elevator for material handling
The electrical trackless handling transfer cart is powered by battery, electric cable and generator. It can spin around 360 degrees. All the cars are equipped with warning alarm, safety inspection device and Dead-man control. It can also be equipped with automatic intelligent charger and PLC control system, so that it can realize full-automatic control.

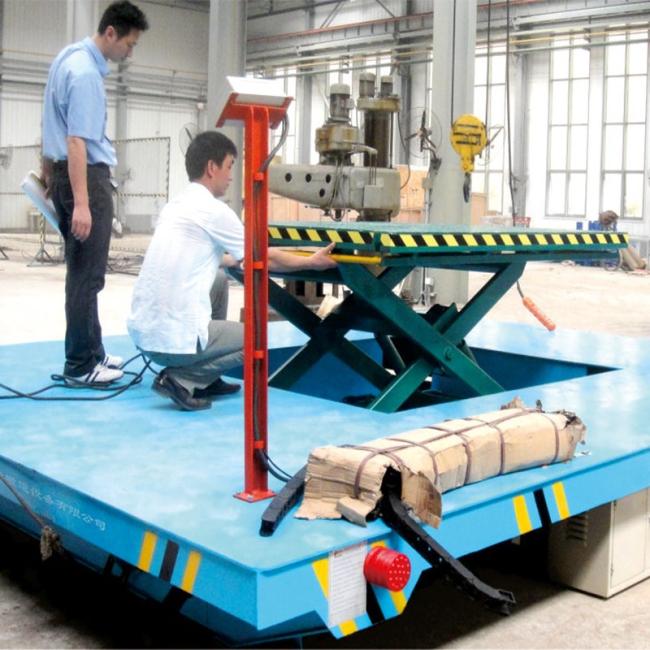

![electrical trackless handling transfer cart]()
Technical Parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t | |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 | |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 | |
| Structure of Frame | Steel plates welded, beam | |||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 | |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 | |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 | |
| Ground requirement | Cement floor or Steel plate ground | |||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | |
| Table size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 | |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 | |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 | |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 | |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 | |
| Turning type | Turning while driving with no stop | |||||
| Control method for turning | Control button | |||||
| Turning structure | Mechanical | |||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 | |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) | |
| Wheel material | ZG55+hydropurture | |||||
| Running speed (m/min) | 0-15 | 0-12 | ||||
| Brake principle | Electric magnetic brake | |||||
| Ground balance | Mechanical automatic adjustment | |||||
| Operation method | With wire or no wire | |||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces | |
| Battery maintainance | Free of maintainance | |||||
| Charger's installation | Installed on cart | Split-type | ||||
| Cart color | Yellow and warning sign | |||||
| Charger's function | Automatic stop for obstacles | |||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | |||||
| Warning equipment | Sound and light | |||||
| Other functions | Turning light, night light and power display | |||||
Packing & Deliverry
Certificates
Customer Photos
After-sales Service
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
