Anti Explosion Proof Ladle Transfer Car Carbon Steel Material 52 M Running Distance
25 ton ladle transfer cart High temperature resistance and anti explosion proof molten ladle and ladle slag transport
The 25 ton ladle transfer cart High temperature resistance and anti explosion proof molten ladle and ladle slag transport is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track.The 25 ton ladle transfer cart High temperature resistance and anti explosion proof molten ladle and ladle slag transport has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. The 25 ton ladle transfer cart High temperature resistance and anti explosion proof molten ladle and ladle slag transport is available in inflammable and explosive environment or used as ferry car. The 25 ton ladle transfer cart High temperature resistance and anti explosion proof molten ladle and ladle slag transport is suitable for long distance transportation and low frequency, since its travel distance is unlimited and low requirement to the track.
Advantage and functions of 25 ton ladle transfer cart High temperature resistance and anti explosion proof molten ladle and ladle slag transport
- The 25 ton ladle transfer cart is Anti-high temperature,Anti-high explosion;
- The 25 ton ladle transfer cart is powered by battery;
- With lifting holes, 25 ton ladle transfer cart is convenient to shipment;
- The 25 ton ladle transfer cart has a feature of stable start, big starting power, long lifetime;
- The 25 ton ladle transfer cart can run on the C-form track or S-form track and L-form track;
- Running distance of the 25 ton ladle transfer cart is unlimited;
- Safe and convenient operation is available for this ladle transfer cart;
- High using frequency;
- Convenient for ladle slag and hot melton transportation;
- Can add ladle support to ensure the steel slag transport;
- Battery powered,cable drum powered,rail powered...

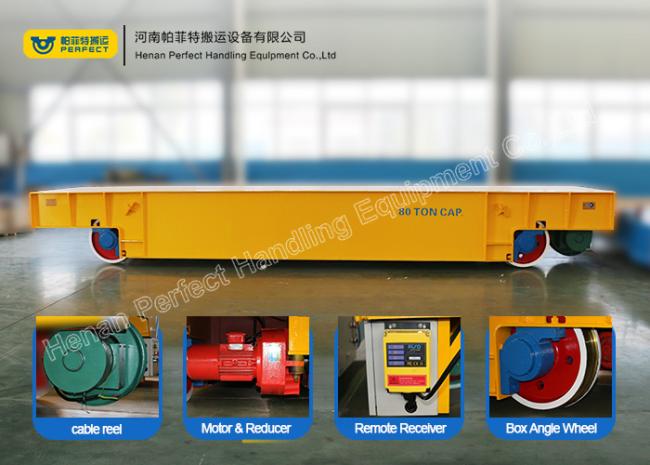

Main Componences of the 25 ton ladle transfer cart High temperature resistance and anti explosion proof molten ladle and ladle slag transport

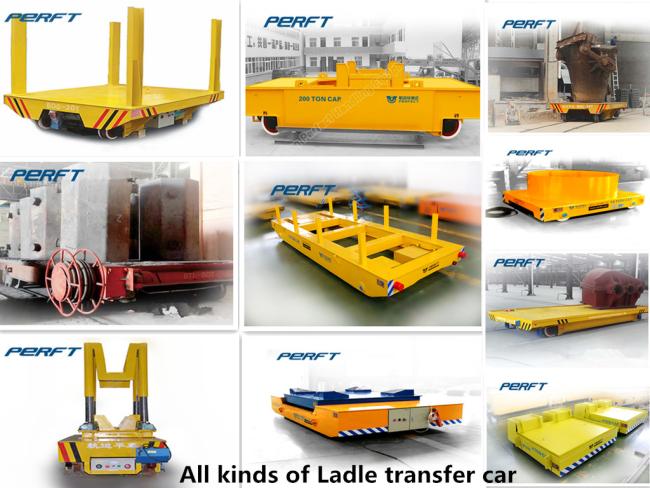

The flat transfer car can be added hydraulic lifting device,V/U shape,ladle support..if need.
Technical Table of 25 ton ladle transfer cart High temperature resistance and anti explosion proof molten ladle and ladle slag transport
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |

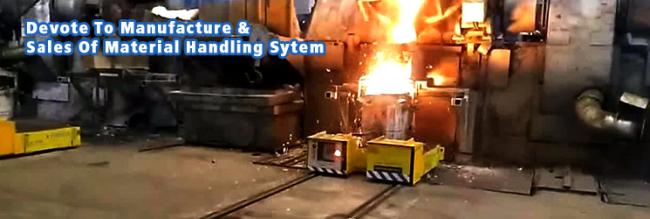

Application and Usage of 25 ton ladle transfer cart High temperature resistance and anti explosion proof molten ladle and ladle slag transport
