75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport
75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport
The 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport powered by cable drums which is installed at the bottom of the automated transfer track car. The 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport is designed for transporting cargoes or equipment from one bay to another in factory,from indoor to outdoor. The 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport has widely applied in the industry transportation field, our company can designed the rail transfer car to meet our customers' demand.
Advantages and functions of 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport
- The cable drum motorized Industrial Rail Transfer Trolley can run on the straight railways to carry many material, workpiece, workpiece;
- The cable drum motorized Industrial Rail Transfer Trolley can be applied in many occasions, such as easy explosion, easy corrasion, high temperature;
- AC motor,simple structure,not limited for the using time;
- The cable drum motorized Industrial Rail Transfer Trolley is powered by cable drum, so there is not strict requirement for the construction of the railway ,and the running distance should accord to the length of the cable.
- Cost is not high, easy to operate and maintenance;
- The cable drum motorized Industrial Rail Transfer Trolley are customized as per your true demand.

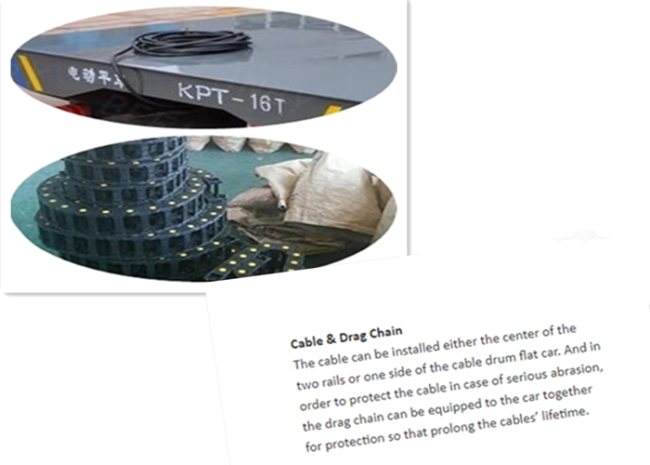

Detailed Image of 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport
Technical parameter table of 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |

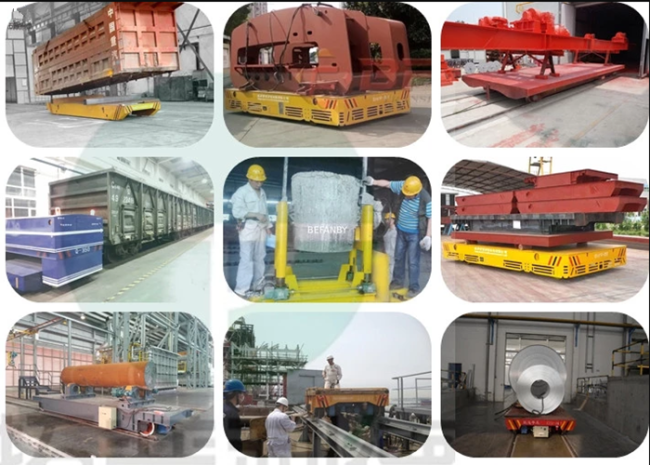

Application of 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport
The 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport has been widely used with hot market. Any interests and problems, please contact with us in any time.We will try our best to help you. hope rich experience can help you well.
