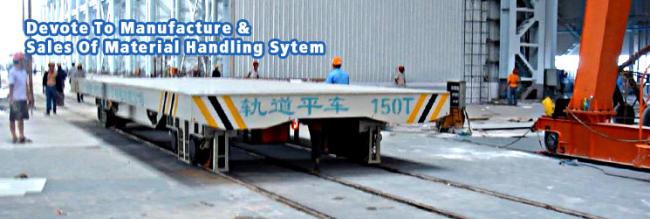

Heavy Load Rail Transfer Cart Carbon Steel Electric Battery Powered Railway Flat Vehicle
Price:
USD:4000-9000/set
MOQ:
1
Delivery Time:
20 work days after received balance payment
Brand:
Battery Rail Transfer Cart
Product Description
Heavy Load Rail Transfer Cart Carbon Steel Electric Battery Powered Railway Flat Vehicle
The Heavy Load Rail Transfer Cart Carbon Steel Electric Battery Powered Railway Flat Vehicle is battery powered.All of our products is customized,such as the capacity,table size,running motor,supply power(cable drum,cable reel,battery powered,rail motorized...).The Heavy Load Rail Transfer Cart Carbon Steel Electric Battery Powered Railway Flat Vehicle is customized,so there is no afraid of whether the track fit your rail route.
Advantages
1.Suitable for all kinds of running routes,such as"L"shape,"U"shape,"S"shape.
2.Running on the rail and the Rail Inner Gauge(mm) is 1200-2000.
3.The special forged wheel,and the Wheel Base(mm) is 1200-2000 and Wheel Diameter(mm) is 270-600.
4.The battery rail transfer cart is customized according to your work environment.
5.The Running Speed(min) is 0-25.
6.Battery powered,easy operation.
7.Imporve the work efficiency.
8.Lithium battery powered endurance.
9.Suitable for the climbing route in port.
Componences
Product parameter
| Model | 2t | 20t | 50t | 100t | 150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | ||
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | ||
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | ||
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | ||
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | ||
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | ||
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | ||
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | ||
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | ||
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | ||
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | ||
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | ||
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | ||
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | ||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | ||
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | ||
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | ||
Application
