150 ton Carbon steel Rail Guided Electric Flat Transfer Cart for Factory Cargo Transportation
150 ton Carbon steel Rail Guided Electric Flat Transfer Cart for Factory Cargo Transportation
The 150 ton Carbon steel Rail Guided Electric Flat Transfer Cart for Factory Cargo Transportation working principle : The roboticized assemble line transferring cart with hard rail dolly is powered by the 36V single-phase (three phase) low voltage rail, which through sliding wire to complete. Ground step-down transformer control cabinet will be single phase (three phase) AC 380V step-down to single-phase (3Phase) 36V, sent to the flat transfer cart by the rail sliding wire, and then step-up (three phase) single-phase AC 380V by step-up transformers on the transfer cart, provide electricity for the single-phase capacitor motors which used in the flat transfer cart.
Functions of 150 ton Carbon steel Rail Guided Electric Flat Transfer Cart for Factory Cargo Transportation
- The transfer cart with hard rail dolly is more suitable for high using frequency
- The rail guided transfer cart with hard rail dolly can be Anti-high temperature,Anti-high explosion;
- The assemble line rail guided transfer cart with hard rail dolly with Simple operation;
- The roboticized assemble line rail guided transfer cart with hard rail dolly has features of stable start, big starting power, long lifetime;
- Safety and flexibility;
- Running distance of the rail guided transfer cart with hard rail dolly is unlimited;
- High efficiency ;
- No restriction of the running time .
- With hard rail dolly's power is supplied with Two-phase 36V low voltage unit.

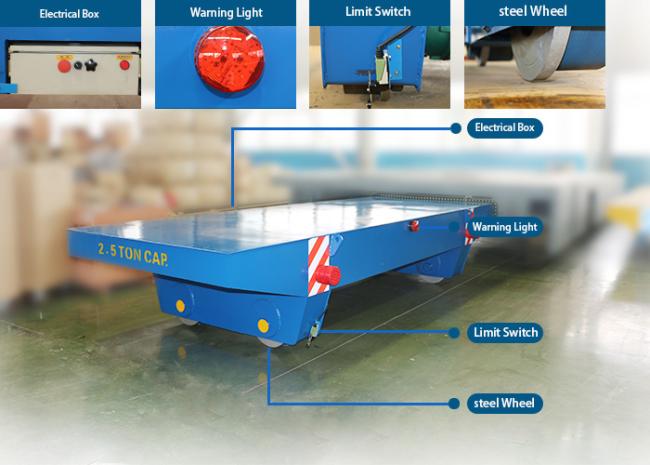

Detailed Image of 150 ton Carbon steel Rail Guided Electric Flat Transfer Cart for Factory Cargo Transportation
Technical parameter table of 150 ton Carbon steel Rail Guided Electric Flat Transfer Cart for Factory Cargo Transportation
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

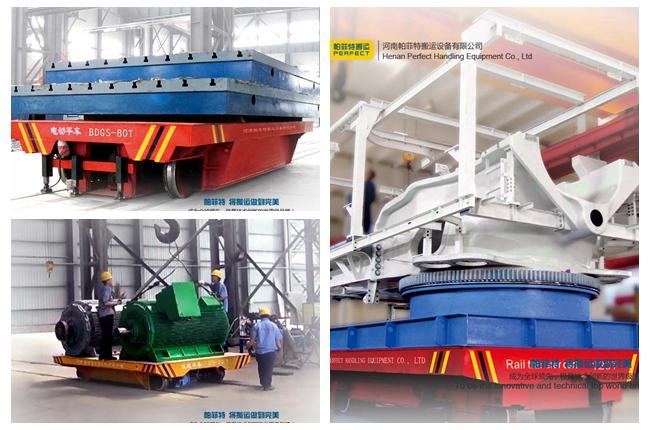

Application of 150 ton Carbon steel Rail Guided Electric Flat Transfer Cart for Factory Cargo Transportation
The Rail guided transfer cart with hard rail dolly can Run on the straight railways or on the ‘S’ and arc-shaped railways to carry many material,and be able to Apply in the high-temperature environment or other worse condition with the strong bearing ability. Therefore, the assemble line rail guided transfer cart with hard rail dolly is mainly applied in assembly line,warehouse transport, ship industry, work piece transport in workshop,lathe transport, steel factory, construction, petroleum industry , energy , chemical industry , railway(rail maintenance, rail welding, train tractor).
