Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car
Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car
This series Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car for Plant is powered by battery, traveling cable, rail, generator or other way.. The Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car can turn to 360 degrees,and very widely used for industrial material turnover when the rail transfer car can not turn during transportation.There are two rows of tracks crossing to solve the problem that the rail transfer car can't turn.The capacity and table size of the Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car can customizable.
Main Components of the Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car
The Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car is a kind of handing system ,which can make the rail car turn 90 degree on rails .Principle: Transfer Car runs on the turntable ,which will automatically rotate or manually rotate to realize the joint with vertical rails .After turnable rotating ,the Transfer Cart can run along the vertical rails .The handing solution can be applied in the occasion such as ring rails ,etc. The turnable system of the Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car for Plant runs steadily and has the features such as high rail jointing accuracy and can meet full automatic electrical control
Advantage of the Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car
1.A good choice for Warehouse Material turnover of workshop rail transfer car.
2.Two rows of tracks crossing to solve the problem that the rail transfer car can't turn.
3.Can turn to 360 degree.
4.Special track setting, fixed rail carrier.
5.Do not occupy the interior space of the factory workshop.
6.A good partner for a rail transfer car.
7.Control panel with wire or romote control.
Technical parameters of the Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

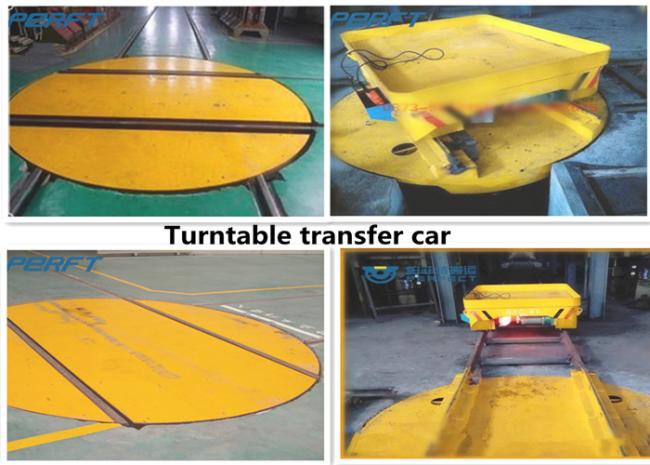

Application of the Customized Industrial Material Handling Turntable with Rails for Material Turnover of Rail Transfer Car
