16 ton Workshop Rail Material Handling Trailer with Turntable with PLC System
16 ton Workshop Rail Material Handling Trailer with Turntable with PLC System
This series 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system is widely used in factory material turnover.The 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system for plant is powered by battery,and you can also choose other supply power ways,such as:traveling cable, rail, generator or other way.. This series 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track.The capacity and table size of the 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system can be customized if need.

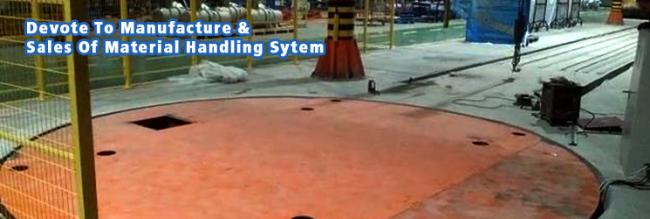

Main Components of the 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system
Advantage of the 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system
The 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system for cargo transportation is a popular style products in Henan Perfect Handling Equipment's company, which can run on the 90 degree turning railway.The 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system an start in every direction,especially in working line or warehouse.The 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system can solve the problem that the rail transfer car can't turn during factory cargo transport.
1.Stable driving
2.High accuracy of rail connection
3.Totally automatically operated
4.Convenient and flexible for people cargo transportation
5.Control panel with wire or romote control
6.Easy operation and not occupy the workshop
7.Customizable track on the flat turntable car
8.Can turn to 90 degree
9.Best choice for the cargo transportation of the workshop where the rail transfer car can't turn
Technical parameters of the 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system
| Model | BXC-2T | BXC-20T | BXC-50T | BXC-100T | BXC-150T |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Running Time | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Distance(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |

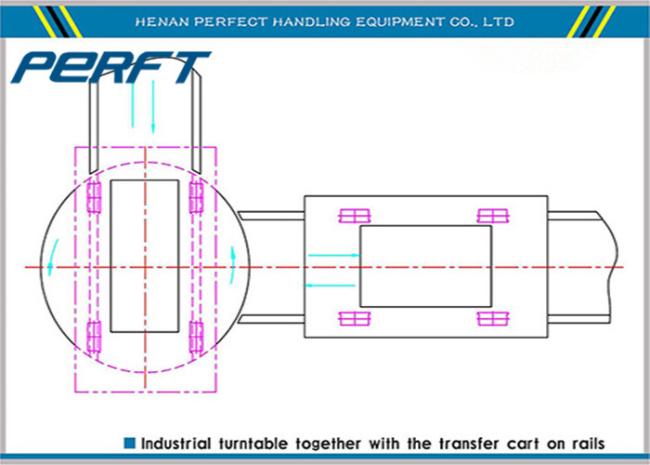

The scheme of the 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system

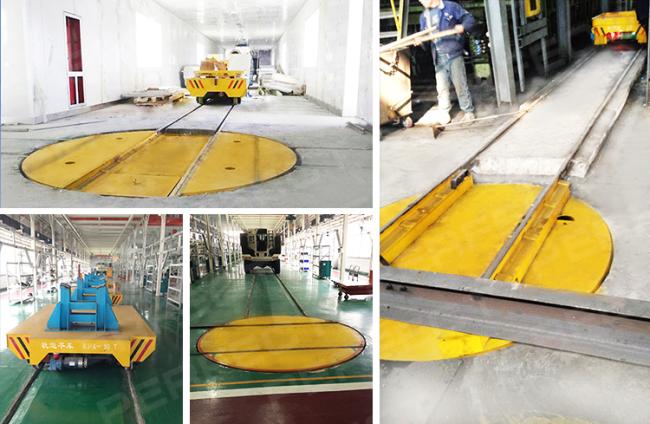

Application of the 16 ton Workshop Rail Material Handling Trailer with Turntable with PLC system
