heavy industry use steel coil electric railway flat vehicle with rail powered trolley
heavy industry use steel coil electric railway flat vehicle with rail powered trolley
The heavy industry use steel coil electric railway flat vehicle with rail powered trolley is powered by battery,low voltage rail,cable drum,trailing cable.There are mounted V-shape and roller on electric powered coil transfer trolley to protect the coil from falling down from the electric powered coil transfer trolley.The V-shape supporting can be designed according to coil diameter,and roller distance can be adjusted as per coil dia.V-shape supporting and roller can be removable from the electric powered coil transfer trolley.We can design coil electric powered coil transfer trolley according to the workshop application,material dimension.It can be applied in all kinds of occasion even severe working environment.
Functions of heavy industry use steel coil electric railway flat vehicle with rail powered trolley
- The electric powered coil transfer trolley is Anti-high temperature,Anti-high explosion;
- The electric powered coil transfer trolley is powered by battery,low voltage rail,cable drum,trailing cable.
- With lifting holes, electric powered coil transfer trolley is convenient to shipment;
- The electric powered coil transfer trolley has a feature of stable start, big starting power, long lifetime;
- The electric powered coil transfer trolley can run on the C-form track or S-form track and L-form track;
- Running distance of electric powered coil transfer trolley is unlimited;
- Safe and convenient operation is available for this electric powered coil transfer trolley;
- High using frequency for electric powered coil transfer trolley.

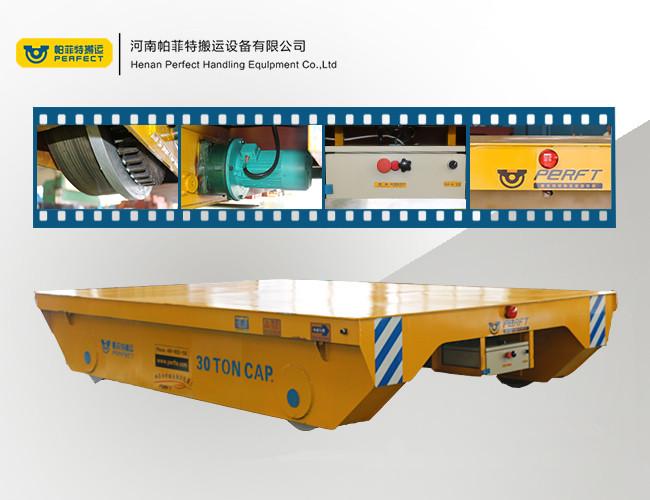

Main Componences of the heavy industry use steel coil electric railway flat vehicle with rail powered trolley
Technical Table of the heavy industry use steel coil electric railway flat vehicle with rail powered trolley
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |

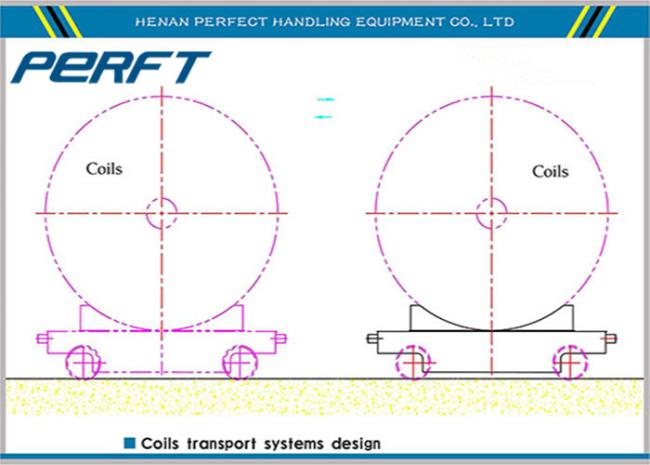

The Scheme of heavy industry use steel coil electric railway flat vehicle with rail powered trolley

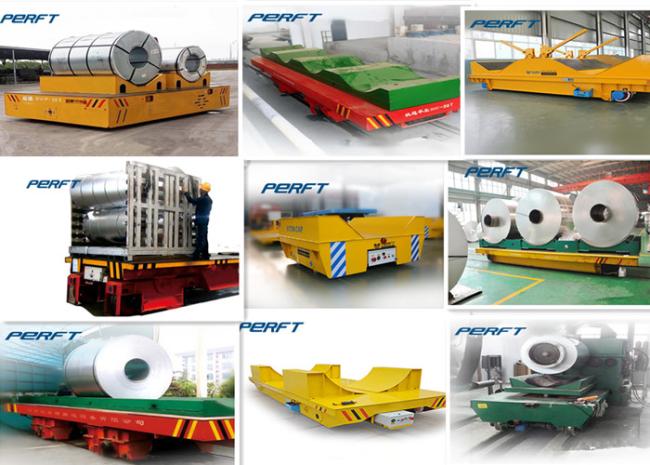

Application and Usage of the heavy industry use steel coil electric railway flat vehicle with rail powered trolley
