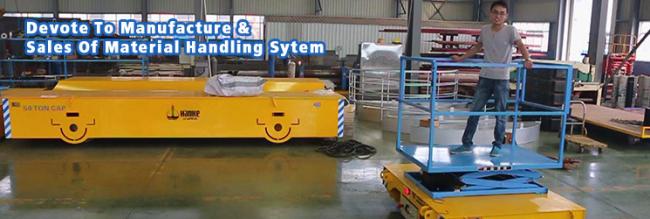

rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart
rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart
The BWP series rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart is consisted of power source, gear train, steel structure bearing frame, steering gear, running gear, control system and fault diagnosis module. other functions. The rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart can turn around on the cement floor.All the rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart are equipped with warning alarm and security detection apparatus, and the alarm would ring and the car would stop immediately if there was any obstacle or pedestrian in the running path of the trackless vehicle. Also, we will provide intelligent automatic rapid charger with the car. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if it’s necessary.
Advantages of the rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart
- Has no limited on using time and high working frequency;
- Can be used in high-temperature environment;
- Can be used in explosion-proof environment;
- Safety and flexibility;
- Large toad capacity, can reach to 300 tons;
- Long service lifetime
- Soft start
Main components of the rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart
Technical parameters of the rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart
| Rated Load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
Application and usage of the rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart
The rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
Packaging & Shipping of the rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart
The rail guided heavy duty plant trailer with scissor hydraulic lifting rail transfer cart body is packed with tarp, the cart wheel and parts will be packed with wooden case.
