Electric Rail Coil Transfer Trolley for Heavy Load Aluminum Coils Plant Carbon steel Railway Flat Transfer Car
Electric Rail Coil Transfer Trolley for Heavy Load Aluminum Coils Plant Carbon steel Railway Flat Transfer Car
The Electric Rail Coil Transfer Trolley for Heavy Load Aluminum Coils Plant Carbon steel Railway Flat Transfer Car is battery powered,so it can be easy operation.You can also choose trhe supply power ways according to your requirements.Such as:battery powered,rail motorized,cable reel powered,etc.The Electric Rail Coil Transfer Trolley for Heavy Load Aluminum Coils Plant Carbon steel Railway Flat Transfer Car is widely used combined with the crane.
Advantage and functions
1.The mounted remote controller controls the whole vehicle , the remote controller has horn , forward , backward , fast forward , rewind , braking , etc . heavy duty material handling equipment.
2.Battery powered and equipped the alarm light.
3.Micro-moving traction. Heavy duty material handling equipment-rail truck trailer has parking braking function to ensure that the ramp does not slip, and has manual parking brake clutch function.
4.Angle box is a maskant for the coil transfer wheels.
5.The charging wire not less than 15m, with automatic wiring arrangement, retracts.
6.The V/U shape can be added if need.
7.The capacity and table size can be customized.
8.Special countertop waterproof material design for the platform.

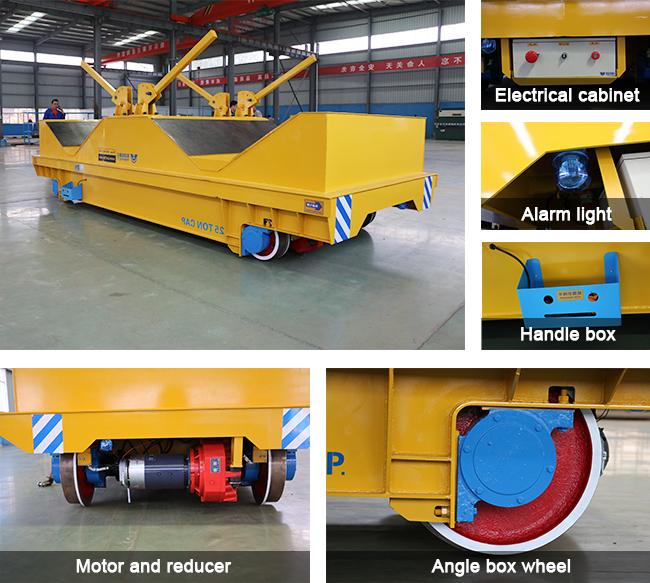

Main Componences
Technical Table
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
Application
