Heavy Duty hydraulic lifting Electric Rail Coil Transfer Trolley for factory Aluminum Steel Pipe and coils transport
Heavy Duty hydraulic lifting Electric Rail Coil Transfer Trolley for factory Aluminum Steel Pipe and coils transport
The Heavy Duty hydraulic lifting Electric Rail Coil Transfer Trolley for factory Aluminum Steel Pipe and coils transport is powered by cabled drum,and power source 380V alternating-current is supplied to the traction motor by cable.The Rail Coil Transfer Trolley can realize full automatic operation by PLC system. The Rail Coil Transfer Trolley can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make Rail Coil Transfer Trolley popular for factory Aluminum Steel Pipe and coils transport.
Advantage and functions
1. The remote controller has horn , forward , backward , fast forward , rewind , braking , etc ,to control the rail coil transfer trolley.
2. The protection level of the rail coil transfer trolley is IP65.
2. The V/U shape can be added if you need.
3. Power emergency stop switch, reasonable installation position, convenient operation.
4. The charging wire of the rail coil transfer trolley not less than 15m, with automatic wiring arrangement, retracts.
5,There is no limitation of the rail coil transfer trolley.

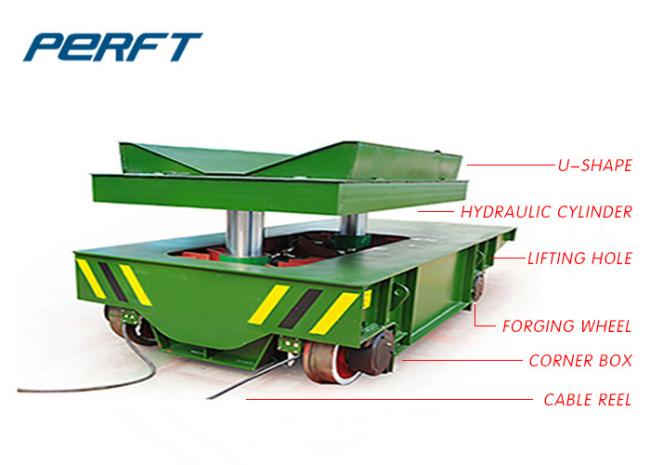

Main Componences
Technical Table
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |

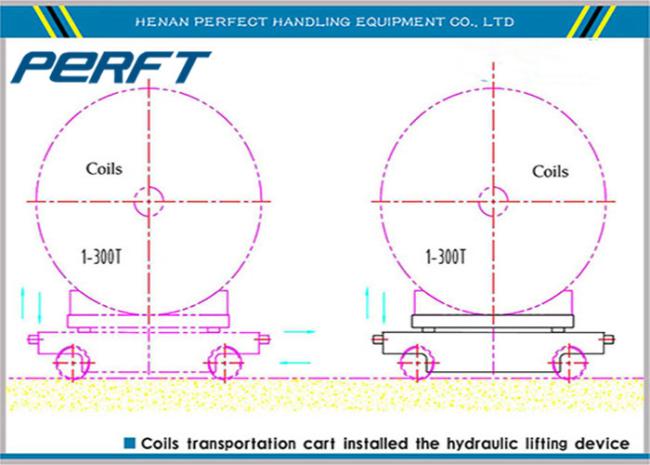

The Scheme

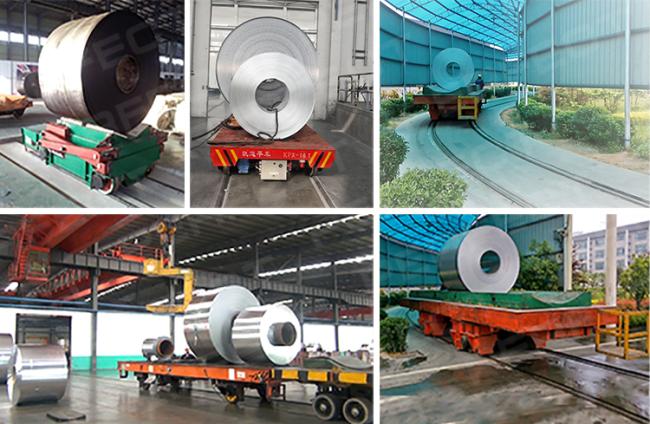

Application and Usage
