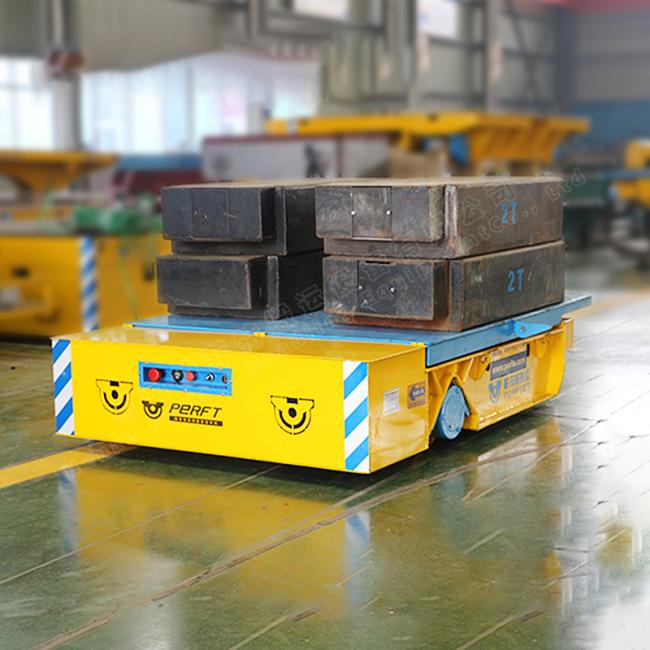

Heavy Load Trackless Material Handling Carts For Factory Workshop Transfer
The BXC series heavy load battery powered car has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. The BXC heavy load battery powered car is available in inflammable and explosive environment or used as ferry car. The BXC series heavy load battery powered car is suitable for long distance transportation and low frequency, since its travel distance is unlimited and low requirement to the track.
Site map for customer use
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
- The heavy load battery powered car is Anti-high temperature,Anti-high explosion;
- The heavy load battery powered car is powered by battery;
- With lifting holes, heavy load battery powered car is convenient to shipment;
- The heavy load battery powered car has a feature of stable start, big starting power, long lifetime; battery powered car can run on the C-form track or S-form track and L-form track;
- Running distance of heavy load battery powered car is unlimited;
- High using frequency for heavy load battery powered car
1. Q: What term of payment do you accept?
A: For the first time we cooperate, we accept 50% T/T as depoist, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as depoist, 70% T/T before delivery. Also, we accept L/C.
2. Q: What is you delivery time?
A: We will delivery the heavy load battery powered car you ordered 45 days after we accept the prepayment.
3. Q: How do heavy load battery powered car been shipped?
A: We export the heavy load battery powered car by sea or train with full container, LCL or in Bulk.
