Industrial Low Voltage Material Transfer Cart , Workshop Material Transfer Equipment

Price Negotiable
Price: USD 2000~7800 set
MOQ: 1 set
Delivery Time: 20 work days after received balance payment
Brand: industrial low-voltage track flatbed cart
Product Description
Industrial Low Voltage Material Transfer Cart For Workshop Material Transfer Equipment

Description of Coil Transporters


Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of industrial low-voltage track flatbed cart. Our company has been founded for 13 years and has become enterprise in the motorized industrial low-voltage track flatbed cart business.



This BDG industrial low-voltage track flatbed cart Control Rail Transfer Car is powered by the rails.The rails need to be insulated in erection.When the running distance is longer than 70m , the transferormer needs to be increased to raise the voltage.




Detailed Image Of industrial low-voltage track flatbed cart


Why choose us?



Components Of industrial low-voltage track flatbed cart




Welding & Maching Of industrial low-voltage track flatbed cart






Technical Parameters Of Coil Transporters
Model BDGZ-2t BDGZ-20t BDGZ-50t BDGZ-100t BDGZ-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Transformer Power(KVA) 3 6.8 10 30 30
Transformer Quanity 1 1 1 1 1
Running Distance(m) 70 70 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Functions & Advantages Of industrial low-voltage track flatbed cart
  • The industrial low-voltage track flatbed cart are Anti-explosion,Anti-high temperature;
  • The industrial low-voltage track flatbed cart are simple structure, low cost;Coil Transporters
  • The industrial low-voltage track flatbed cart are with lifting holes, convenient to shipment;
  • The industrial low-voltage track flatbed cart are soft start, big starting power, long lifetime;
  • The industrial low-voltage track flatbed cart are running on the cement or the shape of "S"&"C" rail;
  • The industrial low-voltage track flatbed cart are running distance is limited; Coil Transporters
  • The industrial low-voltage track flatbed cart are high using frequency; Coil Transporters  Coil Transporters
  • The industrial low-voltage track flatbed cart are unlimited using time;Coil Transporters  Coil Transporters
  • The industrial low-voltage track flatbed cart are low voltage electricity from the railways powered;
  • The industrial low-voltage track flatbed cart are stable start,big staring power,long lifetime.
Application Sites Of industrial low-voltage track flatbed cart

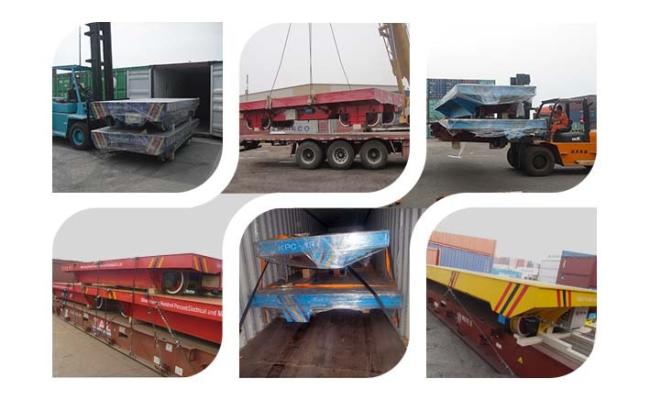

Packing & Deliverry Of industrial low-voltage track flatbed cart




Certificates




Customer Photos









After-sales Service
  • Our commitment: The load bearing safety factor of the Coil Transporters  is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our Coil Transporters can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.Coil Transporters
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.Coil Transporters  Coil Transporters  Coil Transporters
