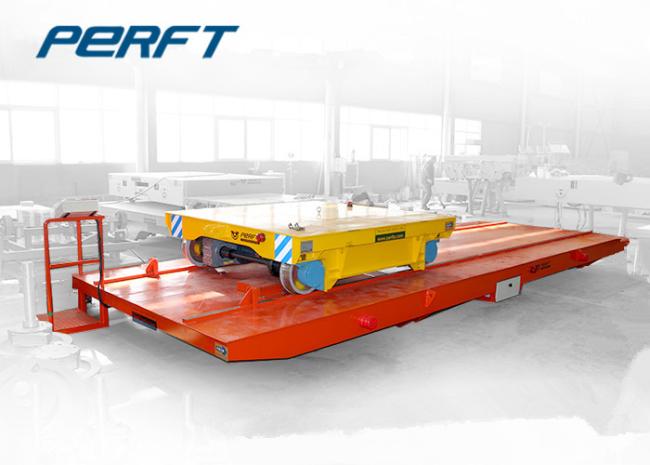

Double track docking Rail Transfer Cart for factory warehouse across material transportation
Double track docking Rail Transfer Cart for factory warehouse across material transportation
The wireless remote control makes the Double track docking Rail Transfer Cart for factory warehouse across material transportation start,stop,move background,turn around and realize other functions.The Double track docking Rail Transfer Cart for factory warehouse across material transportation is a good solution for the cross operation of two flat trucks solves the problem of different transportation in track workshop. The lower carrier can choose any power supply mode,such as:battery powered,rail powered,cable reel motorized,cable drum powered,etc.For the upper material handling equipment, the battery power supply way maybe a good choice for your convenient material transportation.We have to say the battery power supply can not be a suitable choice for the flammable and explosive environment.
Advantages
1.The across transfer cart is Running on the rail.
2.Can be a good solution for the transportation problem of different track height in warehouse material transportation.
3.The parallel orbit on the Across Rail Transfer Cart table to facilitate the docking of another high orbit .
4.The V shape can be added for coils transportation.
5.The ground clearance(mm) of the across rail transfer cart can be required 50-75.
6.The material handling equipment above can be transported on the S or U shape route.
7.The across rail transfer cart above can be removeable freely.
8.The two Across Rail Transfer Cart can be used single or combined use .
9.All of our material handling equipment is customized.
10.For the across rail transfer cart the battery power supply can not be a suitable choice for the flammable and explosive environment.
11.The platform can adopt the waterproof device if need.

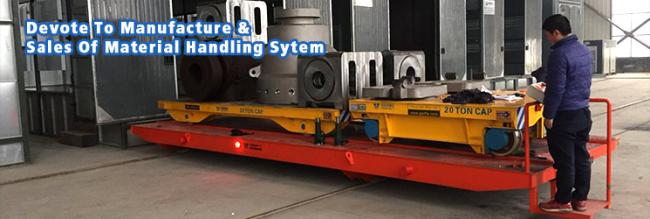

Detailed Image
Product parameters
| Model | 2t | 20t | 50t | 100t | 150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | ||
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | ||
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | ||
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | ||
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | ||
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | ||
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | ||
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | ||
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | ||
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | ||
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | ||
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | ||
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | ||
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | ||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | ||
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | ||
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | ||
The Scheme
Application
The Double track docking Rail Transfer Cart for factory warehouse across material transportation can be a good solution for different height orbit warehouse material transportation.The problem of different track height transportation and crosswise and vertical transportation can be solved.
