50 Ton Rail Guided Steel Coil Transfer Car Excellent Gear Reducer And Motor
50 ton Rail Guided Steel Coil Rail Flat Transfer Car for cargo transportation
The 50 ton Rail Guided Steel Coil Rail Flat Transfer Car for cargo transportation is battery powered,and you can also choose the other supply power ways,such as:rail powered,cable reel motorized,battery powered.The V/U shape can be added to the 50 ton Rail Guided Steel Coil Rail Flat Transfer Car for cargo transportation if need.The 50 ton Rail Guided Steel Coil Rail Flat Transfer Car for cargo transportation was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities.
Advantage and functions of the 50 ton Rail Guided Steel Coil Rail Flat Transfer Car for cargo transportation
- The kind of powered coil rail transfer car is with high level automation
- Excellent gear reducer and motor with high quality, assemblied together perfectly
- Safe devices are installed in the powered coil rail transfer car
- Remote control can be equipped together to operate the powered coil rail transfer car well
- Customization can be supported for the powered coil rail transfer car
- The kind of powered coil rail transfer car is with large capacity and high quality
- The kind of powered coil rail transfer car can be applied in various occasions as high temperature, easy explosion, ponding, dust, scrap iron...
- The hydraulic lifting device can be equipped as per customers' demand
- The V frame can be installed for rounded material as per your need
- The powered coil rail transfer car is with high using frequency and low cost
- long lifetime, no limited time
- The running distance of this kinds powered coil rail transfer car is not limited
- The powered coil rail transfer car is no strict requirement for the rails
Main Componences of the 50 ton Rail Guided Steel Coil Rail Flat Transfer Car for cargo transportation
Technical Table of the 50 ton Rail Guided Steel Coil Rail Flat Transfer Car for cargo transportation
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

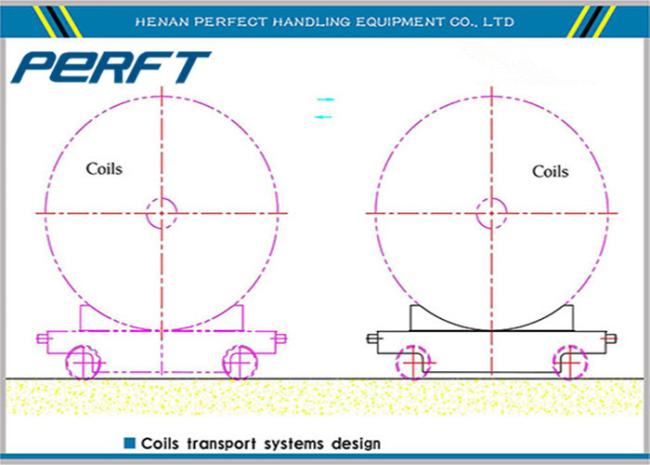

The Scheme of the 50 ton Rail Guided Steel Coil Rail Flat Transfer Car for cargo transportation

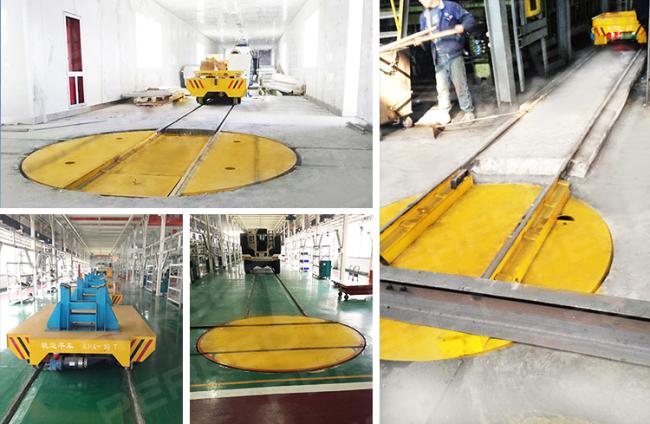

Application of the 50 ton Rail Guided Steel Coil Rail Flat Transfer Car for cargo transportation
