heavy duty carbon steel cable drum powered coil transfer cart on rails for coil and aluminium cargo transportation
heavy duty carbon steel cable drum powered coil transfer cart on rails for coil and aluminium cargo transportation
Advantage
- Excellent gear reducer and motor with high quality, assemblied together perfectly
- Safe devices are installed in the powered coil rail car
- Wireless remote control for the operatation of the powered coil rail car well
- Customization can be supported for the powered coil rail car
- The kind of powered coil rail car can be applied in high temperature, easy explosion, ponding, dust, scrap iron,etc
- The hydraulic lifting device can be equipped as per customers' demand
- The V-frame can be installed for rounded and rolling material
- High frequency using and low cost of this coil handling equipment
- Rail powered,no limitation of the running time
- The running distance of this kinds powered coil rail car according to your work condition
- The powered coil rail car is no strict requirement for the rail
- The package wooden case of the coil transfer cart is waterproof
- Cable drum powered

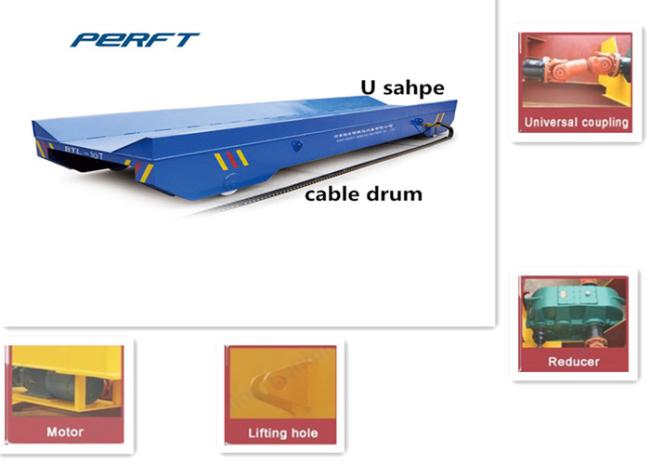

Main Componences
Technical Table
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
The Scheme

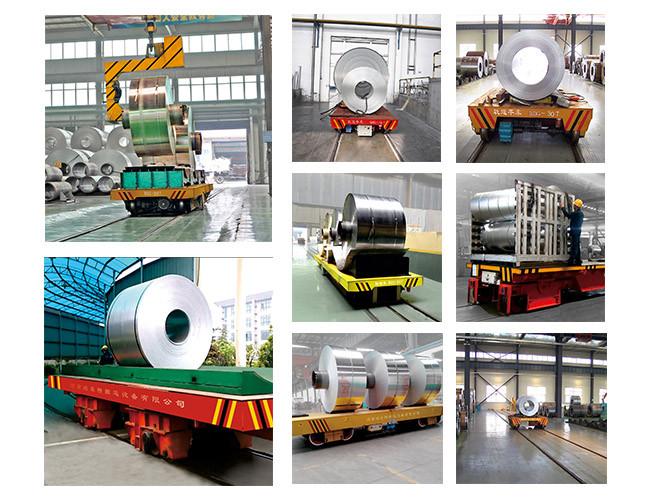

Application and Usage
The V / U frame fixed to the heavy duty steel cable drum powered coil transfer cart determines the distance and quantity of the workpiece according to the size of the carrying workpiece and the quantity of the single shipment, and the user informs us of the size of the workpiece. Our technicians can design a scheme to satisfy the users. Heavy duty steel coil transfer cart's V / U frame can be selected: adjustable distance V frame and fixed V frame welded to the table.
