Industrial Large Motorized Transport Carts for Coils Transportation Welding Frame Aluminum Coil Transfer Trolley
Price:
USD:1000-6000/set
MOQ:
1
Delivery Time:
20 work days after received balance payment
Brand:
Coil Rail Transfer Cart
Product Description
Industrial Large Motorized Transport Carts for Coils Transportation Welding Frame Aluminum Coil Transfer Trolley

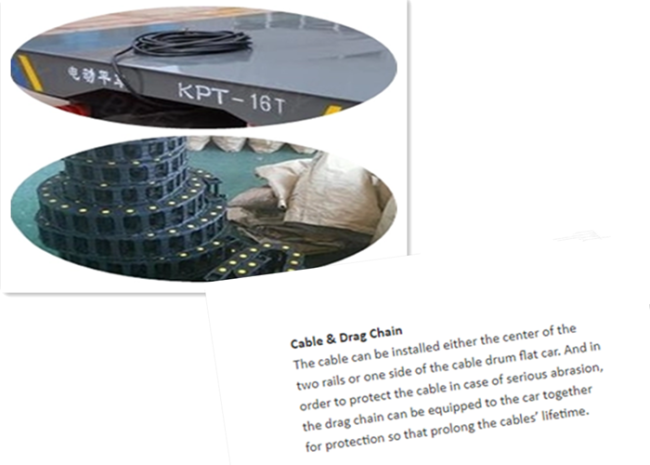

The Industrial Large Motorized Transport Carts for Coils Transportation Welding Frame Aluminum Coil Transfer Trolley is powered by cabled drum. The power source 380V alternating-current is supplied to the traction motor by cable. The Industrial Large Motorized Transport Carts for Coils Transportation Welding Frame Aluminum Coil Transfer Trolley is widely used in the Aluminum Coil factory.
Advantage
- Excellent gear reducer and motor with high quality, assemblied together perfectly
- Safe devices are installed in the powered coil rail car
- Remote control can be equipped together to operate the powered coil rail car well
- Customization can be supported for the powered coil rail car
- The kind of powered coil rail car is with large capacity and high quality
- The kind of powered coil rail car can be applied in various occasions as high temperature, easy explosion, ponding, dust, scrap iron...
- Added the hydraulic lifting device for your need
- The V frame can be added for your nrequired
- High requency use
- No limitation of the running time
- No limitation of the running distance
- The powered coil rail car is no strict requirement for the rails
- Custom v- or u shape
-
Low maintenance and repair cost
-
Suitable to working area with short running distance
-
Suitable to working area with high using frequency; Has no limit on running distance
-
Can be applied in high-temperature environment; Box girder structure
-
Reasonable design, reliable operation
-
Can be add hydraulic lifting device
-
Can be add dumping device; High efficiency, low energy consumption
Main Componences
Technical Table
| Rated Load(t) | 2 | 10 | 20 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø350 | Ø400 | Ø500 | Ø500 | Ø600 | Ø600 | Ø600 | Ø600 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(KN) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 3.8 | 5.5 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 |
