Hydraulic Lifting Industrial Transfer Trolley
hydraulic lifting rail transfer cart electric industrial transportation use for aluminum coil and steel transportation
The hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation is powered by cabled drum which the power source 380V alternating-current is supplied to the coil electric industrial transportation motor by cable. Cable is collected and released by coiling handling equipment mounted underneath the material handling equipment. The coil electric rail industrial transportation can achieve the automatic operation by PLC system. The coil rail transfer cart can be applied in the working condition of severe environment,high temperature, anti-explosive etc. Simple structure and low cost make hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation popular for factory workshop material transportation. The hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation no limitation of capacity and frequently using. If the running distance is beyond 50m, the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation needs to install cable arranger to help with cable rolling. The max running distance of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation can be up to 200-400m.
Advantage and functions of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
- Excellent gear reducer and motor with high quality, assemblied together perfectly
- Wireless remote control of the hydraulic lifting rail transfer car on rails
- Coil rail car can be caustomized according to your requirement
- Hydraulic lifting coil rail transfer car can be applied in various occasions as high temperature, easy explosion, ponding, dust, scrap iron...
- The hydraulic lifting device can be equipped as per customers' demand
- The V-frame and U-shape can be installed for rounded material as per your need
- The powered coil rail car is with high using frequency and low cost
- The hydraulic lifting rail transfer car electric industrial transportation is no limited time
- The running distance of the hydraulic lifting rail transfer car electric industrial transportation coil rail car is not limited
- The power supply of the hydraulic lifting rail transfer car electric industrial transportation can be customized
Main Componences of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
Technical Table of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |

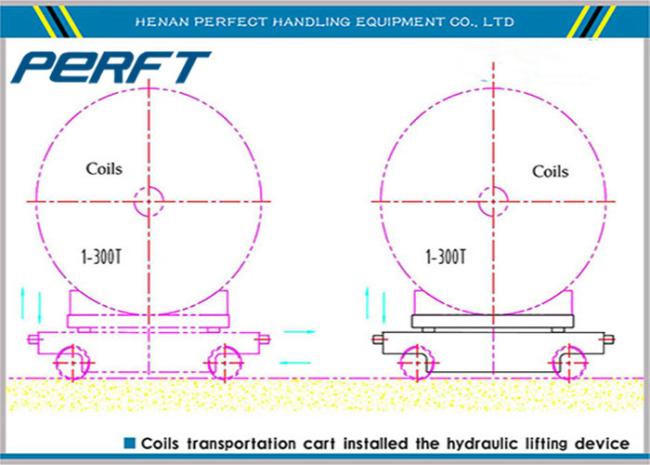

The Scheme of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
Application and Usage of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
The application of our hydraulic lifting rail transfer cart is working at the coil factory.
Packaging & Shipping of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
