Trackless Flat Industrial Transfer Trolley/Heavy Load Electric Trackless Transfer Car for Warehouse Transportation
Trackless Flat Industrial Transfer Trolley/Heavy Load Electric Trackless Transfer Car for Warehouse Transportation
The Trackless Flat Industrial Transfer Trolley/Heavy Load Electric Trackless Transfer Car for Warehouse Transportation is battery powered,which is very convenient to operation.The Trackless Flat Industrial Transfer Trolley/Heavy Load Electric Trackless Transfer Car for Warehouse Transportation can turn to 360 degree on the cemment floor.The Die and Mold device can be added to the Trackless Flat Industrial Transfer Trolley/Heavy Load Electric Trackless Transfer Car for Warehouse Transportation for the die and mold material transportation.The Trackless Flat Industrial Transfer Trolley/Heavy Load Electric Trackless Transfer Car for Warehouse Transportation can be used on the foundary factory when add the explosion-proof equipment is added for the hot melton environment.
Advantages
1.Running on the cemment floor
2.No limitation of the rail
3.No running distance limitation
4.The ground clearance of the industrial transfer trolley is required 50mm
5.Can running on the S,U,Lshape
6.Explosion-proof equipment
7.High temperature resistant material design
8.Waterproof material
9.Electric battery flat transfer car
9.Supply power ways can be customized,such as:cable drum,cable reel,rail powered,busbar...

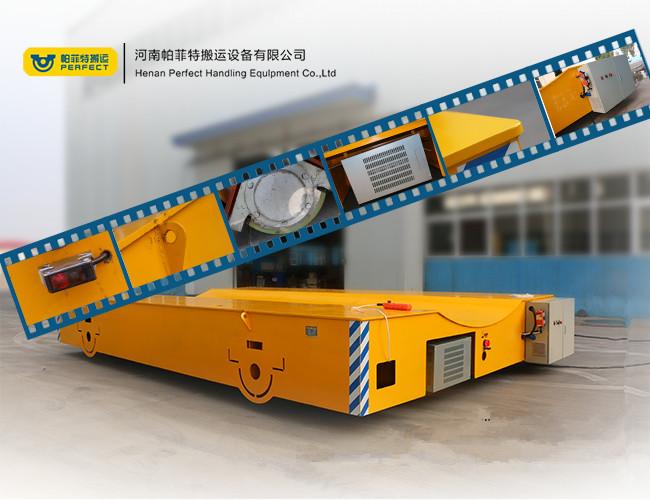

Componences
Technical parameter
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Cement Floor
|
Application

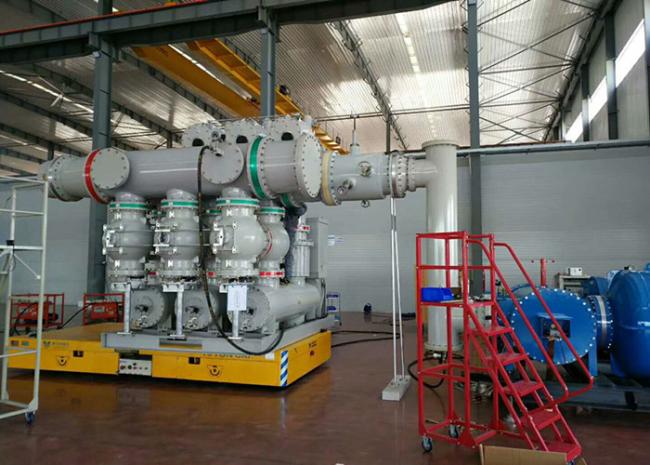

The Trackless Flat Industrial Transfer Trolley/Heavy Load Electric Trackless Transfer Car for Warehouse Transportation play a significant role in the transfer of materials in the workshop of the factory.The industrial transfer troller is widely used in the Logistics, factory material handling, mould factory, foundry,paper mill, energy plant.For flammable and explosive environment, we have a special strategy: explosion-proof device, high temperature material design, waterproof ...
