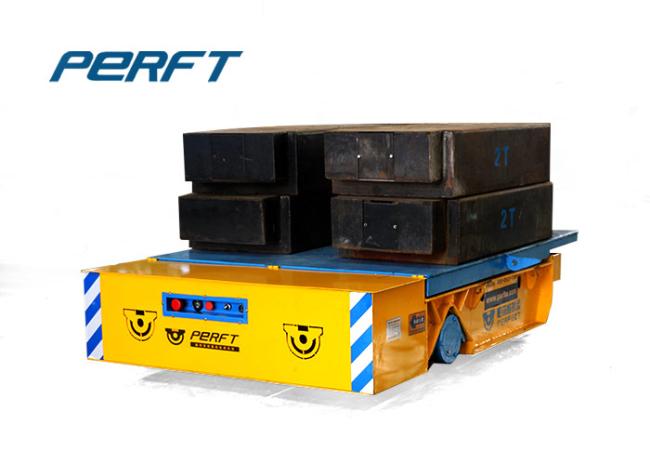

Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment
Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment
The BWP series Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment is battery powered.The Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment gets rid of the rails,which can be turn to 360 degrees on the cemment floor freely. The material equipped caarbon steel.The Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment can add hydraulic lifting device for factory warehouse coils transport if need.
Advantages
1.No orbital restrictions.
2.Run freely, go forward, back forward, turning.etc with the wireless remote control.
3.Battery powered, you can choose the cable reel,railguided...also.
4.Can turn to 360 degree.
5.No harm to the cemment floor.
6.The trackless material transfer cart are customized as per your true demand.
7.Can add V/U shape to the material transfer cart.
8.On the outdoor or indoor work condition,and required cemment floor.
Detailed Image
The frame of the Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment adopts box beam structure according to the crane principle and combined with the design of the trolley.The wheel of the Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment adopts cast steel inside, Polyurethane coating outside. The Intelligent charger of the Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment are a better choice for the customer. The dead man stop, with flexible reaction, can stop automatically, when meeting some obstacles, And compared with the common one,the fan-shaped sensoring zone can be realized, which makes the operation safer.
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Application
Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment, literally speak,is a electric flat transfer cart without rails, which is the special type compared with traditional rail flat transfer cart. More importantly,The Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment has been new favorite in the industry transport field all over the world with hot market. Especially for the workshop that it exists unfixed running distance.
