Heavy Duty Plant Trailer / Battery Powered Cart For Factory Warehousing
heavy duty battery powered flat rail transfer cart for factory warehousing and industrial material handling trailer
The supply power of battery powered flat rail transfer cart can be customized,such as the battery,rail,cable drum,etc.The battery powered flat rail transfer cart can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make battery powered flat rail transfer cart popular for workshop transportation. The battery powered flat rail transfer cart can be applied in the occasion with any loading capacity and high using frequency. If the running distance of the battery powered flat rail transfer cart is beyond 50m.The max running distance of battery powered flat rail transfer cart can be up to 200-400m.
Advantage and functions of the heavy duty battery powered flat rail transfer cart for factory warehousing and industrial material handling trailer
1.Excellent gear reducer and motor with high quality, assemblied together perfectly of the battery powered flat rail transfer cart
2.Safe devices are installed in the scrap battery powered flat rail transfer cart
3.Remote control can be easy to operation battery powered flat rail transfer cart
5.The battery powered flat rail transfer cart can be customized,such as the capacity,table size...
6.The kind of scrap battery powered flat rail transfer cart is with large capacity and high quality
7.Can be applied in various occasions as high temperature, easy explosion, ponding, dust, scrap iron...
8.The hydraulic lifting device can be equipped if you need
9.The V-frame and U-shape can be installed in the battery powered flat rail transfer cart
10.The scrap battery powered flat rail transfer cart is with high using frequency and low cost
11.long lifetime, no limited time of the battery powered flat rail transfer cart
12.The running distance of this kinds scrap battery powered flat rail transfer cart is not limited.
13.The battery powered flat rail transfer cart is no strict requirement for the rails
14.Can an be customized:lifting equipment,V-shape or U-shape for coil material handling equiopment,die and mold equipment,etc.
Main Componences of the heavy duty battery powered flat rail transfer cart for factory warehousing and industrial material handling trailer
Technical Table of the heavy duty battery powered flat rail transfer cart for factory warehousing and industrial material handling trailer
|
Model |
BXC-2t |
BXC-20t |
BXC-50t |
BXC-100t |
BXC-150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size(mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Heigth(H) |
450 |
550 |
650 |
900 |
1200 |
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
1 |
2.2 |
5 |
10 |
15 |
|
|
Battery Capacity |
180 |
180 |
330 |
440 |
600 |
|
|
Battery Voltage |
24 |
48 |
48 |
72 |
72 |
|
|
Running Time When Full Load |
4.32 |
4 |
3.3 |
3.2 |
2.9 |
|
|
Running Distance for One Charge(Km) |
6.5 |
4.8 |
4 |
3.8 |
3.2 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|

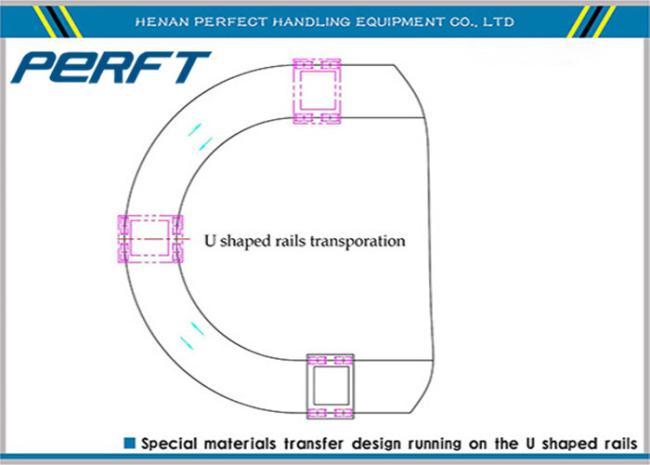

The scheme of the heavy duty battery powered flat rail transfer cart for factory warehousing and industrial material handling trailer
Application and Usage of the heavy duty battery powered flat rail transfer cart for factory warehousing and industrial material handling trailer
