Motorized / Material Handling Trolley For Industrial Light Material Transportation
The BJT Series motorized on rail flat transfer cart is powered by cabled drum. The power source 380V alternating-current is supplied to the motorized on rail flat transfer cart motor by cable. Cable is collected and released by coiling device mounted underneath the motorized on rail flat transfer cart. The motorized on rail flat transfer cart can realize full automatic operation by PLC system. The motorized on rail flat transfer cart can be applied in the environment such as severe environment,high temperature, anti-explosive etc.The motorized rail flat transfer car can be applied in the occasion with any loading capacity and high using frequency. If the running distance of the motorized on rail flat transfer cart is beyond 50m, the motorized on rail flat transfer cart needs to install cable arranger to help with cable rolling. The max running distance of the motorized on rail flat transfer cart is up to 200-400m.
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
- The motorized on rail flat transfer cart is Anti-high temperature,Anti-high explosion;
- The motorized on rail flat transfer cart is powered by cable drum;
- With lifting holes, motorized on rail flat transfer cart is convenient to shipment;
- The motorized on rail flat transfer cart has a feature of stable start, big starting power, long lifetime;
- The motorized on rail flat transfer cart can run on the C-form track or S-form track;
- Running distance of motorized on rail flat transfer cart is unlimited;
- Safe and convenient operation is available for motorized on rail flat transfer cart;
- High using frequency for motorized on rail flat transfer cart;

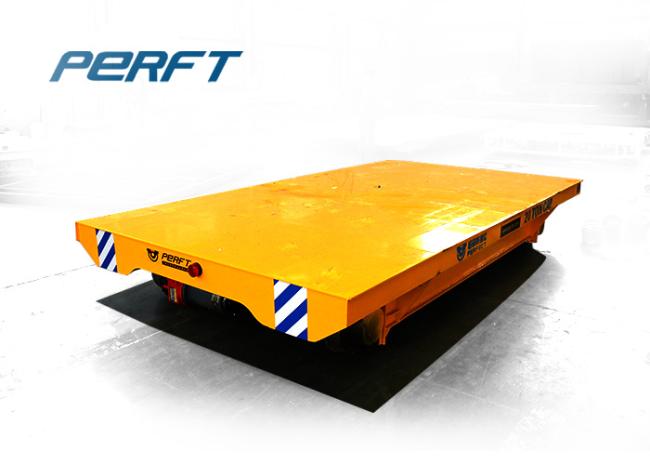

The scheme of the Low-bed motorized on rail flat transfer cart with 6 T load capacity for industrial light material transportation
;
